10G Industrial PoE Switch - IG5 SV Series | IEC 61850 Certified, Ideal for Power/Transportation Projects

If you can't see the content, please view the online version here。Apr. 2025

PoE Power Supply + IEC 61850 Standard, Industrial IoT All-in-One Solution

The EtherWAN IG5 SV industrial-grade switch is designed for critical applications, featuring 10G high-speed transmission and 28 flexible port configurations. It supports IEEE 802.3af/at PoE, providing 30W per port and a total power budget of 90W with intelligent distribution. Certified by IEC 61850 and IEEE 1613, it offers 5kV impulse protection and operates in a wide temperature range of -40°C to 75°C, making it suitable for renewable energy, smart grids, and industrial control fields.

Featuring with IEEE 1588v2 hardware time synchronization and integrates L2/L3 network management functions (static routing, OSPF, VRRP). Built-in DNA control port expansion and alarm systems to ensure efficient operation. The IP40 metal chassis meets the IEC 60255-27 safety standard, paired with 24-48VDC redundant power supply to ensure uninterrupted critical tasks, making them an ideal choice for Industrial IoT (IIoT) and smart energy management.

•  10G upstream
•  IEEE 802.3 af/at PoE compliance
•  IEC 61850-3/IEEE 1613, 5kV Impulse protection
•  IEEE 1588v2 Time Synchronization (±50ns)
•  UCA Iug Laboratory certified IEC 61850 90-4
•  MMS & Goose messaging supportive
•  L2/L3 Management (OSPF/VRRP/static routing)
•  DNA for alarm and detect system integration
•  O.T. -40°C~75°C, IP40 Metal Case

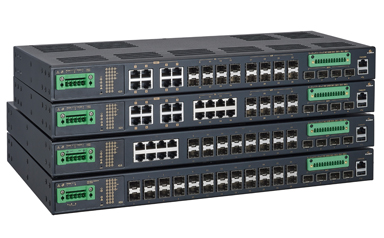

Ideal Choice for Diverse Configurations and Flexible Installation

The IG5 and IG5 L series offer a variety of port configurations, including AC and DC power options ranging from 24V to 250V. Coupled with the IG5 SV's PoE functionality and more compact design, supports PD device's requirements while saving 20% installation space. With multiple safety certifications, to be satisfied various application needs. Compliant with IEC 61850-90-4, easy to handle smart grid and substation message transmission.

Featuring EtherWAN's Alpha-Ring fast backup technology, VRRP virtual router redundancy protocol and IP Source Guard network security settings, to ensure application scenarios with strict requirements on data transmission continuity and maintain consistent high-efficiency output and protection performance. With the rapid development of Industry 4.0, the EtherWAN IG5 series is undoubtedly the most flexible invisible network backbone for green factories and smart cities.

	IG5 Series / IG5 L Series	IG5 SV Series
Network management	Layer 2 / Layer 3	Layer 2 / Layer 3
Ports Number	28	28
Max. 10/100/1000 BASE-T	8/16/24	8/16/24
Max. 1000 BASE-SFP	24/16/8	24/16/8
Max. 10G SFP+	4	4
PoE Ports	-	0/8
LED Panel	2	1
Digital Input & Relay Output	2	2
Mechanical	IP40	IP40
Dimensions	442 x 325 x 44	442 x 267 x 44
Power input	Dual or Single Input	Dual input
24 - 48VDC	V	V
100 - 250VDC	V	-
110 - 240VAC	V	-
Operating Temperature	-40 to 75℃ / -10 to 60℃	-40 to 75℃
