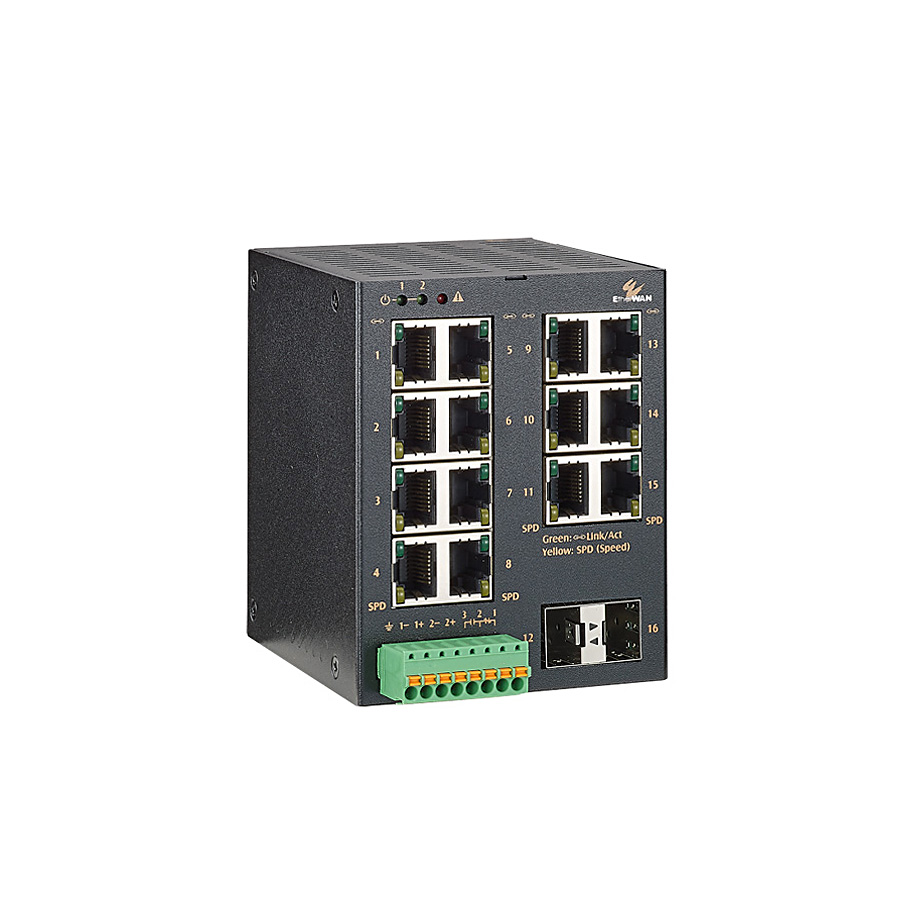

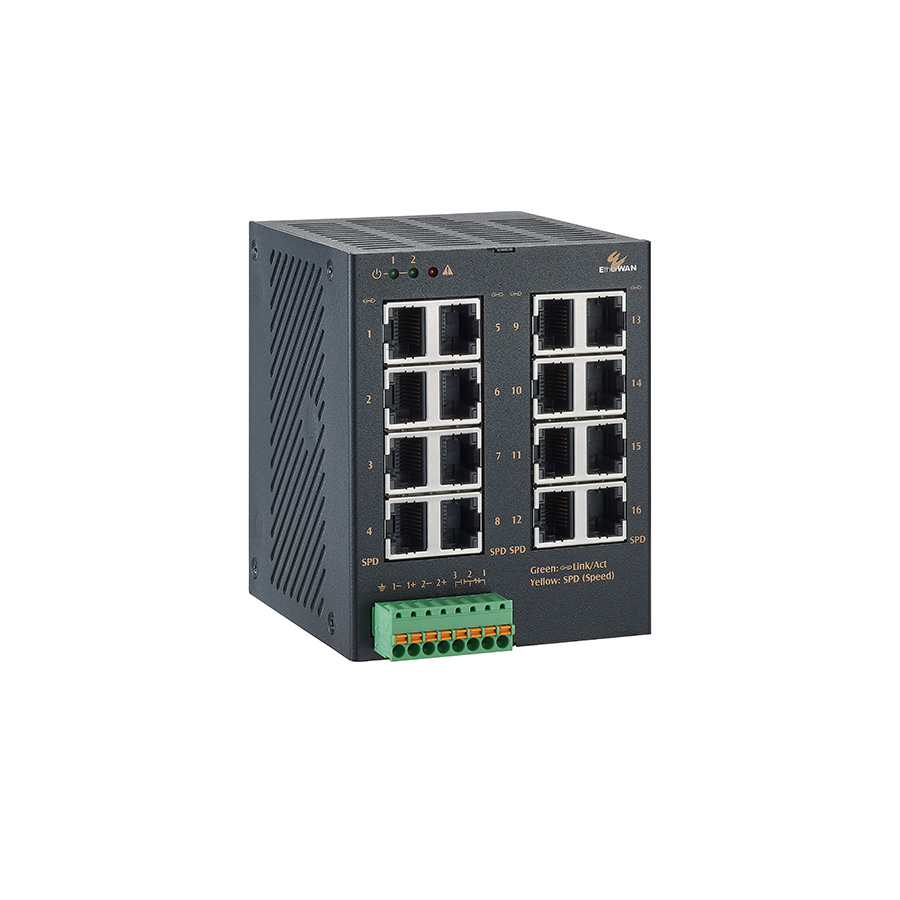

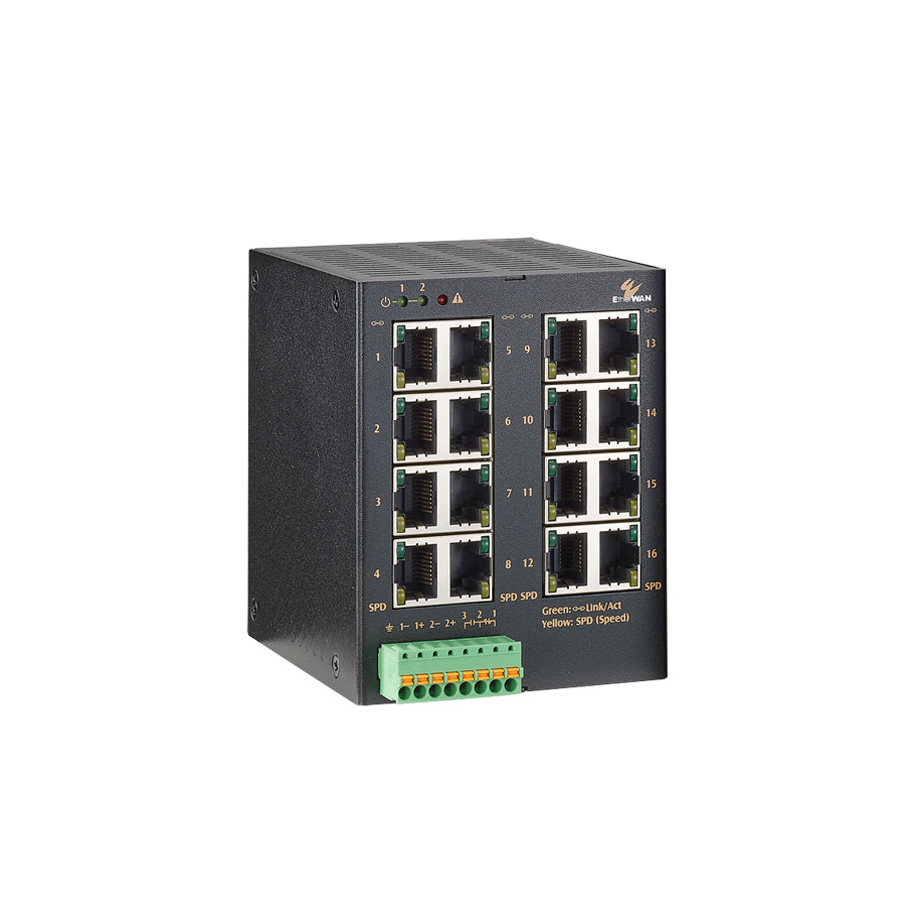

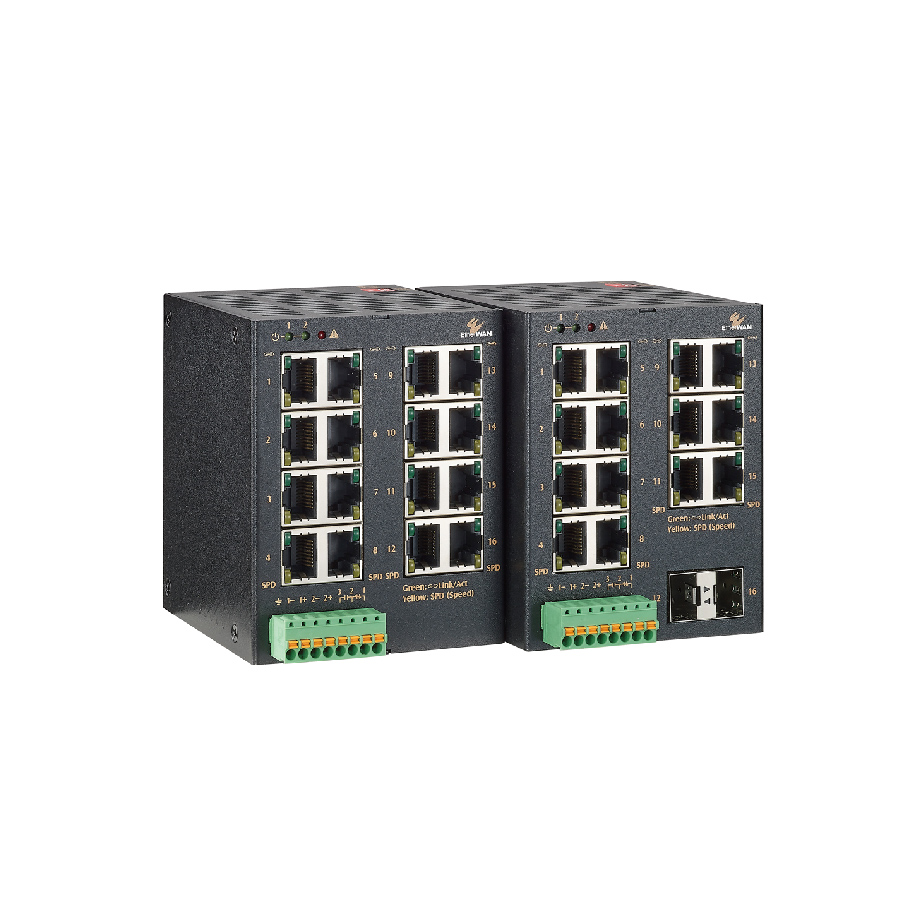

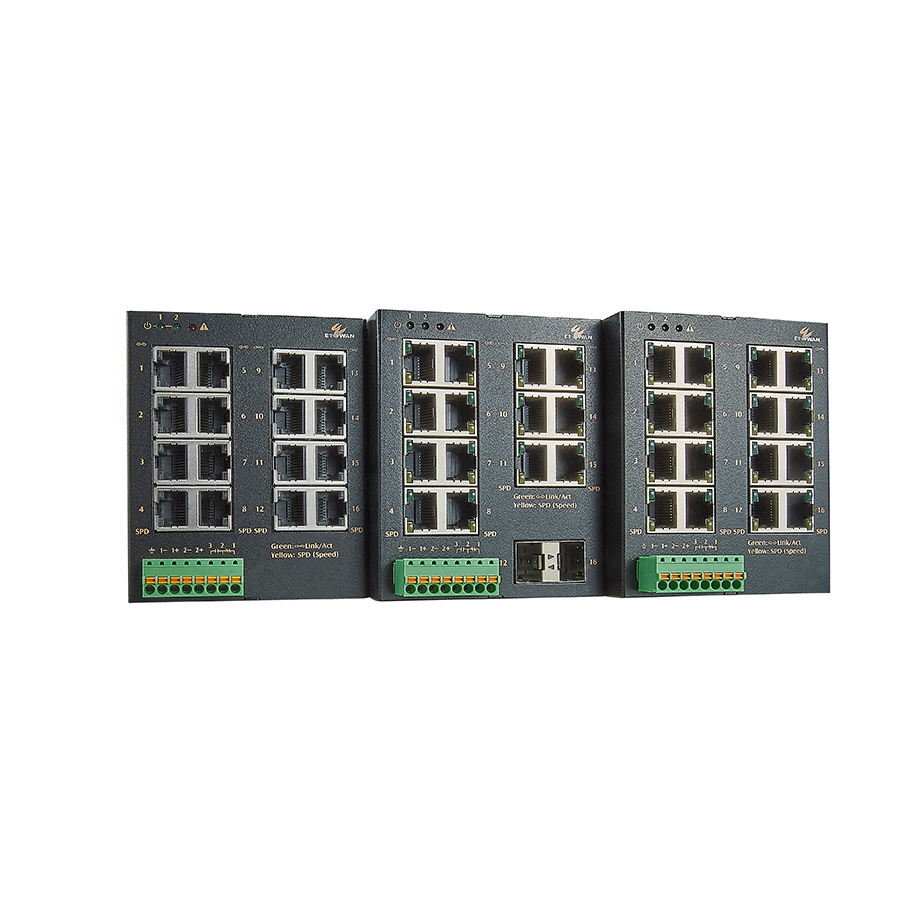

OttoE H 16 Series

Range of Operating Temperatures

• • Supports Hardened Grades

SFP Connectivity

• • Up to two 100/1000BASE SFP option

High Reliability

• • Fanless design

Quality of Service

• • PROFINET (TG100H), EtherNet/IP

Interface

• Ethernet
  • 10/100BASE-TX: 6/8/14/16-ports
  • 10/100/1000BASE-TX: 6/8-ports
  • 100BASE-SFP: 0/2-ports
  • 100/1000BASE-SFP: 0/2-ports
• Alarm Contact
  • One relay output with current 0.5A@30V (8-port Series)/0.5A@48V (16-port Series)
• LED Indicators
  • Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
  • Per Port: Link/Activity (Green)
  • Per Port: Speed (Yellow) (16-port Series)

Physical

• Casing Material
  • Metal
• IP Rating
  • IP30
• Dimensions
  • 8-port series: 45 x 75 x 100mm (W x D x H) (1.77" x 2.95" x 3.94")
  • 16-ports series: 80 x 91 x 100mm (W x D x H) (3.15" x 3.58" x 3.94")
• Weight
  • 8-port Series: 336g (0.74lbs)
  • 16-port Series: 502g (1.11lbs)
• Installation Type
  • DIN-Rail (Top hat type 35mm) mounting

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Quality of Service (QoS)
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
• Packet Buffer Memory
  • 768K bits (TF100H 8-port)
  • 2M bits (TF100H 16-port)
  • 1.5M bits (TG100H)
• Processing Type
  • Store-and-Forward
  • Auto Negotiation
  • Half-duplex back-pressure
  • Auto MDI/MDIX
• Address Table Size
  • 2K MAC (TF100 8-port)
  • 8K MAC (TF100 16-port)
  • 4K MAC (TG100)

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15 Class A
  • VCCI Class A
  • EN 61000-6-4
  • ICES-003
  • EN 55032
  • BSMI
• EMS
  • EN 61000-6-2
    • - EN 61000-4-2 (ESD)
    • - EN 61000-4-3 (Radiated RFI)
    • - EN 61000-4-4 (Burst)
    • - EN 61000-4-5 (Surge)
    • - EN 61000-4-6 (Induced RFI)
    • - EN 61000-4-8 (Magnetic field)
• Safety
  • UL 61010
• Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (8-port Series)
  • IEC 60068-2-31 (16-port Series)
  • (Free fall w/package)
• Industrial
  • EN 50121-4
• Traffic
  • NEMA TS2

Power

• Input
  • 9-55VDC (Terminal Block)
• Power Consumption
  • 3.4W max. (8-port Series)
  • 3.72W max. (16-port Series)
• Protection
  • Reverse Polarity Protection

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -40 to 85°C (-40 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)

What's Included

• Device
  • Ethernet switch
