EW50 Series

Industrial LTE Cellular Gateway

Not available in North America

Primary and Backup connectivity

Global LTE and dual SIM cards for failover

Comprehensive interface for field connectivity

Low power consumption

Downloads

Datasheet Manuals Firmware Visio Stencil Utility

Flexible Configurations with Reliable Connectivity

- Ethernet, serial, DI/DO and Modbus bridging for connecting diverse field assets
- Ideal for M2M and industrial IoT applications

Reliable and Uninterrupted Connection

- Equipped with dual SIM cards for failover
- Failover management for network reliability and uninterrupted uptime
- Always online 4G LTE internet connection/IP Passthrough Mode

Comprehensive Data Security

- IPSec, OpenVPN, PPTP, and L2TP VPN support up to 16 concurrent tunnels with max 70Mbps throughput (IPSec)

Rugged Industrial Design

- Features metal housing with fan-less cooling, IP30
- Supports operating temperature from -30 to 70°C (-22 to 158°F)

The EW50 is an intelligent industrial grade gateway designed for critical infrastructure and industrial applications. It provides reliable and secure remote connectivity designed for harsh environments, giving operations and IT real-time awareness with remote monitoring.

Moreover, it delivers best-in-class multi-path connectivity with Wireless, Ethernet, serial, and digital I/O to satisfy most applications. Global LTE options make it easy to get connected.

Industrial LTE Cellular Gateway | Promotion Page EW50 Series

	4G LTE		3G	2G	Region
Sku Code	FDD LTE	TDD LTE	WCDMA	GSM/EDGE	Region
TA	B1(2100)/ 3(1800)/ 4(AWS)/ 5(850)/ 7(2600)/ 8(900)/ 28(700 APT)	B40(2300)	B1(2100)/ 2(1900)/ 5(850)/ 8(900)	B2(1900)/ 3(1800)/ 5(850)/ 8(900)	Taiwan, Australia
EUS	B1(2100) / 3(1800) / 5(850) /7(2600) / 8(900) / 20(800)	B38(TD 2600)/ 40(TDV 2300)/ 41(TD 2500)	B1/ B5/ B8	B3(1800)/ 8(900)	EU, Singapore, Malaysia, Vietnam, Thailand, Turkey, Philippines, India, Indonesia, South Korea
JP	B1(2100)/ B3(1800)/ B8(900)/ B18(800 Lower)/ B19(800 Upper)/ B26	B41(TD 2500)	B1(2100)/ 6(UMTS only)/ 8(900)/ 19(800 Upper)	-	Japan

Cellular Interface

Standards
- • Cellular Frequency Bands: (Please check Frequency Bands Region Codes)
- • LTE Cat. 4: FDD-LTE, TDD-LTE, Transfer rate (max):
  LTE FDD: 150Mbps down; 50Mbps up
  LTE TDD: 130Mbps down; 35Mbps up
- • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
- • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
Antenna connector
- • 2 x SMA Female
SIM Slot
- • 2

Ethernet

Standards
- • IEEE 802.3 10BASE-T
- • IEEE 802.3u 100BASE-TX/100BASE-FX
- • IEEE 802.3ab 1000BASE-T
Ports
- • 2 x RJ45 GE
Physical Layer
- • 10/100/1000BASE-T

Serial

Ports
- • 2 x RS-232/RS-485

I/O

DI/DO
- • 1 x Digital In ("Logic 0": 0-2V, "Logic 1": 5V-30V)
  1 x Digital Out (Relay Mode, up to 30V/1A)

USB

Standards
- • USB 2.0
Ports
- • 1 x USB Type A

Micro SD

Capacity
- • Max. Storage of 64GB

Functions

VLAN
- • Port-based, Tag-based VLAN
Port Forwarding
- • Virtual Server/Computer (1-1), DMZ Host, PPTP/L2TP/IPSec Pass-through
Routing
- • Static, Dynamic: RIP1/RIP2, OSPF, BGP
VPN
- • IPSec, OpenVPN, PPTP, L2TP, GRE
Firewall
- • SPI Firewall with Stealth Mode, IPS
Event Engine/Event Handling
- • Managing/Notifying Events: DI, DO, Modbus, SMS, Syslog, SNMP Trap, Email Alert, Reboot

Cloud Development Platform

Support Microsoft Azure

Field Communication

Virtual COM
- • RFC2217, TCP Client, TCP Server, UDP
Modbus
- • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
- • Slave for Device Status/Information Access
Data Logging
- • Sniffer, Off-line/Full-time Proxy, Mixed modes
Data Interchange
- • MQTT Broker, MQTT Client

Power

Input
- • DC 9V-36V
Power consumption
- • 7.0W Max.

Mechanical

Dimension
- • 31 x 99 x 130.6mm (w/o mounting brackets)
Weight
- • 0.9Kg (1.98lb)
Installation
- • DIN-Rail

Environment

Operating Temperature
- • -30 to 70°C (-22 to 158°F)
Storage Temperature
- • -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- • 5% to 95%

Regulatory Approvals

Safety
- • EN 60950-1
- • EN 62368-1: 2014
Emissions/Immunity
- EW50-TA FCC/NCC/RCM
- EW50-EUS FCC/CE/NBTC/NTC/KC*/SDPPI**
- EW50-JP VCCI/JATE

  Note:
  KC*: EW50 doesn't support SKT SIM card, suggest to use Global SIM card or Non-SKT SIM Card.
  SDPPI**: Indonesia Radio Type Approval
  78410/SDPPI/2021
  13696

Model

EW50-EUS	Industrial LTE Cellular Gateway-EUROPE & SOUTH ASIA
EW50-TA	Industrial LTE Cellular Gateway-TAIWAN & AUSTRALIA
EW50-JP	Industrial LTE Cellular Gateway-JAPAN

Optional Accessories

GWAP-1	Item	Amount	Frequency	Description	Note
	LTE	2	698-960/ 1710-2170/ 2300-2690MHz	Cellular Omni Antenna, N/female Jack Bulkhead	IP67
	Surge Protector	2	-	0-6GHz Surge Lightning Protector, N/female Jack Bulkhead To N/male Plug	IP67
	Bracket	2	-	-	-
	LTE Cable	2	-	SMA/male Plug To N/male Plug with NFC200 Cable	-

P/N.	Image	Item	Amount	Frequency	Description	Note
W96G-GY113HT46		Cellular Antenna Base	1	-	This antenna base can be used on EW50 / EW200 / AiR PACE LTE antenna to extend 1.5M. Each model needs 2 antenna bases. This antenna base is not IP67.	-

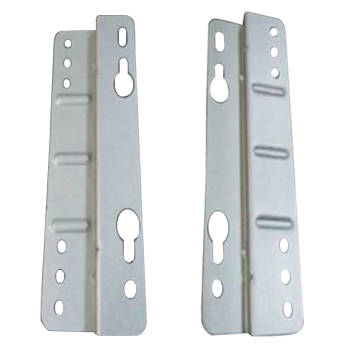

W96G-11361Y50S		Wall Mount Kit	1 set	-	1 set package includes 2 wall mount (Right side & Left side) & 4 pcs screws	-
