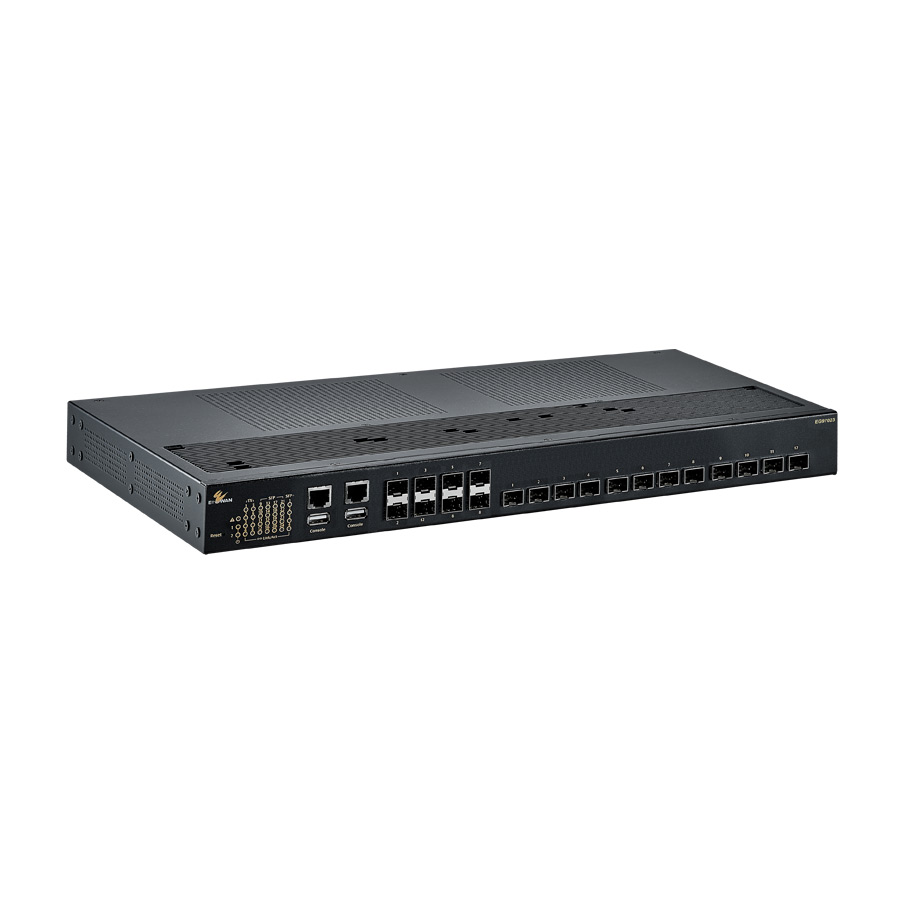

EG97023 Series test2

High Density, High Bandwidth Fiber Solution

• • Multiple ports with ultra-fast 10-gigabit speeds running at full capacity
  • 12 dual-rate 10-gigabit SFP+ ports for fiber connections into the core/hub
  • 8 dual-rate gigabit SFP ports for fiber connections to the nodes/edge

Hardened-Grade for Non-Ventilated & Harsh Environments

• • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fan-less operation
  • Thermal shock and electrical noise resistance

Full Layer 3 Functionality

• • Optimized routing at hardware level
  • Improved fault isolation
  • Layer 3 capability connects networks together

Compliant Products

• • NEMA TS2 rated
  • UL certified for safety
  • TAA/NDAA compliant for government projects

Management/Security Features

• • Port Security, Authentication, and Access Control
  • Storm Detection, IP ACL, and System Logging
  • Configure and monitor with eVue™

Lifetime Warranty

• • Complimentary Technical Support
  • Free Firmware Upgrades

Interface

• CLI, Telnet, Web GUI

Management

• Firmware upgrade
• Configuration backup
• DHCP Server/Client
• RMON (Remote Monitoring)
• Port Mirroring
• NTP (Network Time Protocol) synchronization
• LLDP (Link Layer Discovery Protocol)
• IPv4/IPv6
• SNMP v1/v2c/v3

Security

• MAC Address filtering
• Enable/Disable port
• Storm control
• System logging
• Remote authentication through RADIUS and TACACS+
• Complex password support
• Multi-user login and privileged access management
• SSH for CLI and Telnet security
• SSL and HTTPS for web security
• ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

• Priority Queues: 8 queues per port
• Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
• Rate Limiting (Ingress/Egress)

Layer 2 Features

• Auto-negotiation for port speed and duplex
  • Flow Control
  • IEEE 802.3x full duplex mode
  • Back-pressure half duplex mode
• Redundant Protocols
  • IEEE 802.1D STP
  • IEEE 802.1w RSTP
  • IEEE 802.1s MSTP
• VLANs
  • IEEE 802.1Q Tag VLANs
  • GVRP
  • GMRP
• Link Aggregation
  • Static Trunk
  • IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3

Layer 3 Features IPv4

• Unicast Routing
  • Static Routing (1K)
  • RIP v1/v2
  • OSPF v2
• Multicast Routing
  • PIM-DM
  • PIM-SM
• Routing Redundancy
  • VRRP

Layer 3 Features IPv6

• IPv6 Unicast Routing
  • RIPng
  • OSPF v3
• IPv6 Multicast Routing
  • PIM6-DM
  • PIM6-SM
• IPv6 Routing Redundancy
  • VRRP v3

Software Properties and Performance

• Switching Fabric
  • 256Gbps
• Forwarding Rate
  • 190.4Mpps
• Total VLAN Entries
  • 256 (4096 VID)
• Jumbo Frame Size
  • 12KB
• MAC Table Size
  • 24K
• Packet Buffer Memory
  • 32M bits
• L2 Routes
  • Up to 24,000 unicast and 1,000 multicast routes
• L3 IPv4 Routes
  • Up to 8,000 unicast and 8,000 multicast routes
• L3 IPv6 routes
  • Up to 2,000 unicast routes

Interface

• Ethernet
  • 8 x 100/1000 BASE-SFP
  • 12 x 1G/10G SFP+
• Console
  • 1 x RJ45, 1 x USB
• Config Backup
  • 1 x USB (Type A Connector)
• Alarm Contact
  • Relay output, current capacity
    0.6A/30VDC
• LED Indicators
  • Per Unit: Power 1, Power 2, Alarm
  • Per Port: Link/Activity

Technology

• Standards
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3ae 10Gbit/s Ethernet over fiber for LAN
  • IEEE 802.3an 10GBASE-T Ethernet over copper twisted pair cable
  • IEEE 802.3x full duplex and flow control
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x PNAC
  • IEEE 802.1ab LLDP
• Forward/Filtering Rate
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
  • 14,881,000pps for 10Gbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
    Half-duplex back-pressure and fullduplex flow control
  • Auto MDI/MDIX
• System Memory
  • 4Gb DDR3 SDRAM
• Flash Storage
  • 2GB

Power

• Input
  • VWR: 100-240VAC Redundant (Terminal block)
  • VCR: 100-240VAC Redundant (AC Inlet)
• Power Consumption
  • 75W Max

Physical

• Casing Material
  • Metal
• Dimensions
  • 442 x 325 x 44mm (W x D x H)
    17.4" x 12.8" x 1.73"
• Weight
  • 6.2kg (13.7lbs)
• Installation Type
  • Rack mounting

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)
• MTBF
  • 585224 Hours at 25°C

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMC
  • EN 55032
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
• EMS
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic field)
• Safety
  • UL 62368-1
• Traffic
  • NEMA TS2
• Rail
  • EN 50121-4
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • FED STD 101C Method 5007.1

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet Switch
• Cables
  • 1 Console Cable
• Power
  • 2 AC Power Cord
• Installation
  • Mounting Brackets, Screws
• Documentation
  • Quick Install Guide
