Industrial Smart IoT Edge Computing LoRa Gateway (Project base with quantity requirement)
Not available in North America
Edge computing
AWS Greengrass and Azure IoT Edge enablement
Supports Python and Node-RED for user application customization
Industrial protocols
Highly-reliable network connection
- » Offers multiple Internet access methods: Gigabit Ethernet, Global 3G/LTE Cat. 4 networks
- » With support of Dual-SIM, redundant link backup, and VRRP hot standby, the gateway ensures continuous connection by seamless transition to a backup link when main link fails
Powerful edge computing capabilities
- » ARM Cortex-A53 processor, 1GHz main frequency, up to 1GB DDR3 RAM and 8GB eMMC FLASH give the gateway powerful Edge computing capabilities to perform data optimization, real-time response, agile connection, smart applications, security and privacy protection at the IoT Edge
Compatible with multiple industrial protocols
- » MQTT
Optional LoRa Gateway with network server
- » Accessing up to 200 of LoRaWAN edge nodes
- » LoRaWAN 3 in 1, combine LoRa Gateway, Network Server and Applicaton Sever in One (Fig 1)

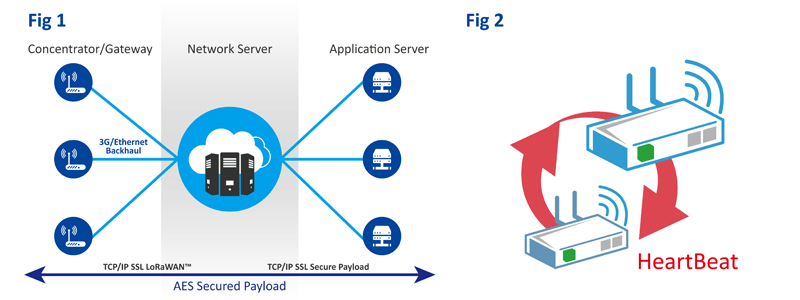

- » LoRaWAN network redundancy to secure LoRa data (Fig 2)
AiR PACE, the EtherWAN Industrial Smart IoT Edge Computing Gateway for Internet of Things (IoT), is a configurable and manageable wireless gateway. The AiR PACE features various interfaces and supports useful user application tools to meet IoT applications. It provides real-time data analysis and intelligent processing at the fieldbus edge, which is more effective and secure. The AiR PACE is both Microsoft Azure IoT edge certified and AWS IoT Greengrass qualified. Quick-to-deploy, the AiR PACE smart gateway can be tailored to any IoT application needs.
EtherWAN — "When Connectivity is Crucial."
LoRa (*AiR PACE 1-XX-CL Series)
| 4G LTE | 3G | 2G | LoRa | Region | ||
| Sku Code | FDD LTE | TDD LTE | WCDMA | GSM/EDGE | ||
| TA | B1(2100)/ 3(1800)/ 4(AWS)/ 5(850)/ 7(2600)/ 8(900)/ 28(700 APT) | B40(2300) | B1(2100)/ 2(1900)/ 5(850)/ 8(900) | B2(1900)/ 3(1800)/ 5(850)/ 8(900) | 920-925MHz (AS923) | Taiwan |
| EA | B1(2100)/ 3(1800)/ 5(850)/ 7(2600)/ 8(900)/ 20(800)/ B28A(700) | B38(TD 2600)/ 40(TDV 2300)/ 41(TD 2500) | B1(2100)/ 8(900) | B3(1800)/ 8(900) | 920-925MHz (AS923) | APAC |
| EU | B1(2100)/ 3(1800)/ 5(850)/ 7(2600)/ 8(900)/ 20(800) /B28A (700) | B38(TD 2600)/ 40(TDV 2300)/ 41(TD 2500) | B1(2100/ 8(900) | B3(1800)/ 8(900) | 863-870MHz (EU868) | EU & Vietnam |
Functions
- Cellular
- 3GPP, 3G/4G, IP Pass-through, IPv4
- Band management for band lock
- Ether-WAN
- Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Protocols
- DHCP Server/Relay
- Port-based, Tag-based VLAN
- QoS
- LLDP
- Port Forwarding
- NAT 1-1, 1-Many, transversal, Virtual Server/Computer, DMZ, VPN Pass-through
Network Management
- Configuration
- Web Console, CLI, Command Script, Python
- Management
- SNMP v1/v2c/v3, AiR PACE MIB
- System
- Upgrade, Backup & Restore, Reboot & Reset, SysLog
- Diagnostic
- Ping, Traceroute, Packet Analyzer, Sniffer (Field communicating data logging), Diagnostic tool
Security
- VPN
- IPSec (Up to 16 Tunnels), OpenVPN, PPTP, L2TP, GRE
- Firewall
- SPI Firewall with Stealth Mode, IPS
- Access Control
- URL Blocking, URL Blocking, MAC Filter
Field Communication
- Virtual COM
- RFC2217, TCP Client, TCP Server, UDP
- Data Interchange
- MQTT Broker, MQTT Client
- Data Logging
- Sniffer, Off-line/Full-time Proxy, Mixed modes
Service
- Cellular Toolkit
- Data Usage, SMS, SIM PIN, USSD, Network Scan
- Event Handling
- User Defined Manage/Notify Event; Action & Trigger by SMS, Mail, Syslog, SNMP Trap, Modbus, I/O
- Development Platform
- Python Customization Development
- Amazon AWS Greengrass
- Microsoft Azure IoT Edge
- User Application Tool
- Node-RED
- LoRa
- LoRa Gateway, Public Network Server (External), Private Network Server (Internal, up to 200 nodes)
- Device Classes: Class-A and Class-C
- GNSS
- GPS Location Tracking
Platform
- CPU: ARM Cortex A53 1.35GHz Dual Core
- DRAM: 1GB DDR3 Memory
- Storage Pre-installed: 8GB eMMC
- Storage Slot: MicroSD Slot x 1 for SD 3.0 (SDXC) Compliant Storage Expansion
Cellular
- Standards
- 4G LTE: FDD-LTE, TDD-LTE, Transfer rate (max): LTE FDD: 150Mbps down; 50Mbps up; LTE TDD: 130Mbps down; 35Mbps up
- 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
- 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
- SIM Slot
- 2 x microSIM card slots
LoRa (*AiR PACE 1-XX-CL Series)
- Frequency Band
- 863-870MHz (EU/EU868), 920-925MHz (APAC/AS923)* Japan Excluded
- Specification
- 8-channel LoRa Gateway module
- Max. Output Power: 14dBm (EU868), 20dBm (AS923)
- Sensitivity: -137dBm@293bps (SF=12, 125k Bandwidth)
Ethernet
- Standards
- IEEE 802.3 10/100/1000BASE-T
- IEEE 802.3u 100BASE-T(X)
- IEEE 802.3ab 1000BASE-T(X)
- IEEE 802.1x Flow control
- Full/Half duplex mode
- Auto MDI/MDI-X connection
- Auto negotiation speed
- Ports
- 1 x RJ-45 GbE (WAN/LAN Configurable) +2 x RJ-45 GbE
Serial
- Ports
- 1 x RS-232/RS485 (4-pin Terminal Block)
- Signal
- RS-232: TxD, RxD, GND
- RS-485: D-/A, D+/B, GND
I/O
- Analog Input
- 2 x AI
- Conversion: 12bit ADC
- Input Range: 0-10V
- Resolution: 2.5mV
- Digital Input
- 2 x DI (Isolated, "Logic 0": 0-2V, "Logic 1": 5-30V)
- Digital Output
- 2 x DO (Isolated, Non-Relayed Output, 24V/300mA for each port)
- Connector
- 10-pin Terminal Block
USB
- Standards
- USB 2.0 Host
- Ports
- 1 x USB Type A
Antennas
- Cellular
- 2 x SMA Female (Main & Aux.)
- GNSS
- 1 x SMA Female
- LoRa (*For AiR PACE 1-XX-CL Series Only)
- 1 x SMA Female
LED Indicators
- System
- PWR x 1; Status x 1
- Data
- LAN1, LAN2, LAN3/WAN, 4G1L, Serial, LoRa* (*LoRa Model Only)
- Cellular Signal
- 4G1S
Power
- Input
- 9-36VDC
- AiR PACE 1-XX-CX: 14.5Watts (Max.), 8.5Watts (Typical)
- AiR PACE 1-XX-CL: 17Watts (Max.), 11Watts (Typical)
Physical
- Casing Material
- Metal Case
- IP Rating
- IP30
- Dimension
- 40 x 117.8 x 161.3mm (W x D x H)
- 40 x 127.4 x 161.3mm with DIN-Rail kit (W x D x H)
- Weight
- 0.76kg (1.67lbs)
- Installation Type
- DIN-Rail mounting
- Wall mounting Bracket* (*Optional)
Environment Limits
- Operating Temp.
- -30 to 70°C (-22 to 158°F)
- Storage Temp.
- -40 to 85°C (-40 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
Regulatory Approvals
- Safety
- EN 60950-1
- EN 62368-1: 2014
- Emissions/Immunity
- CE/NCC BSMI
4G LTE & LoRa Gateway
