EX78900X シリーズ

広範囲動作温度対応産業用/管理型 12ポート 10/100/1000BASE-T(X) +4ポート 1G/10G SFP+ PoE ギガビット イーサネットスイッチ
PoE 15W
PoE 30W
PoE_60W
PoE_90W
Wide Temperature
IEEE 1588
10G
Fanless
DnA
EN 50121-4
IEEE 802.3bt type 4 (90W) 準拠対応
パワーバジェット 360W
1G/10G デュアルレート SFP+ ポート装備
2 デジタル入力と 2 リレー出力
スタティックルート, RIP v1/v2, VRRP 対応
お問い合わせ

EtherWAN の EX78900X シリーズはDINレールに取り付けられた産業用マネージド PoE イーサネットスイッチです。最大12ギガビットPoEポート、90W電力および IEEE 802.3.bt 準拠対応、4 つのデュアルレート 1G/10G SFP ポートを備えた EX78900X シリーズは、都市インフラ、交通、セキュリティなどのネットワークに柔軟性と信頼性を提供します。

EtherWAN — "When Connectivity is Crucial."



High Bandwidth and Versatility

    • 12 10/100/1000BASE-T(X) ports for high bandwidth connections
    • Up to 4 Dual-rate 1/10G SFP+ uplink ports for fiber connections
    • Full capacity switching running at full duplex

Hardened-Grade for Non-Ventilated & Harsh Environments

    • Wide operating temperature range -40 to 75°C (-40 to 167°F)
    • Fanless operation
    • High impact, thermal shock, and electrical noise resistance

Lite Layer 3 Functionality

    • Static routing, RIP v1/v2, and OSPF
    • Redundancy with VRRP
    • Reduces amount of broadcast traffic

PoE Features

    • IEEE 802.3bt with up to 90W per port; 360W total power budget
    • PoE watchdog monitors status of connected PoE devices

Management/Security Features

    • Port control, SFTP
    • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
    • Configure and monitor with eVue™ and eLite™

Support

    • Complimentary technical support
    • Free firmware upgrades and notifications
    • Limited lifetime warranty

Interface

  • CLI, Telnet, Web GUI, SSH

Management

  • SFTP (Secured FTP) support
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • PoE Watchdog
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3
  • Modbus TCP

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm Control and Detection
  • System logging
  • IEEE 802.1x LAN Access control
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • TLS and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP

Software Properties and Performance

  • Switching Fabric
    • 104Gbps
  • Forwarding Rate
    • 75.29Mpps
  • Max VLANs
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 16K
  • Packet Buffer Memory
    • 12M bits


Interface

  • Ethernet
    • 12 x 10/100/1000BASE-T(X)
    • 4 x 1/10G SFP+
  • Console
    • 1 x RJ45
  • Config Backup
    • 1 x USB (Type A Connector)
  • Digital Input
    • 2 x Digital Input
    • Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
    • Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
  • Alarm Contact
    • 2 x Relay output, current capacity; 0.5A/48VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)
    • Per PoE Port: PoE Status (Orange)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
    • IEEE 802.3az EEE
    • IEEE 802.3af/at/bt Power over Ethernet
    • IEEE 1588v2 PTP
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 2Gb DDR3 SDRAM
  • Flash Storage
    • 1Gb

Power

  • Input
    • 46-57VDC Redundant (Terminal block)**
      ** 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
          52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
          54-57VDC for IEEE 802.3bt, type 4, 90W PD devices
  • Power Consumption
    • 20W Max (without PoE)
  • PoE Power Output
    • Ports 1-12: Up to 90W/port; Power Budget: 360W
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 72 x 140 x 170mm (W x D x H)
      2.8" x 5.5" x 6.7"
  • Weight
    • 1.5kg (3.3lbs)
  • Installation Type
    • DIN-rail mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • 1,496,987 hours

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • PoE Ports: line to earth 6kV Surge
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Traffic
    • NEMA TS2
  • Rail
    • EN 50121-4
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet switch
  • Cables
    • 1 Console cable
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick install guide

Model

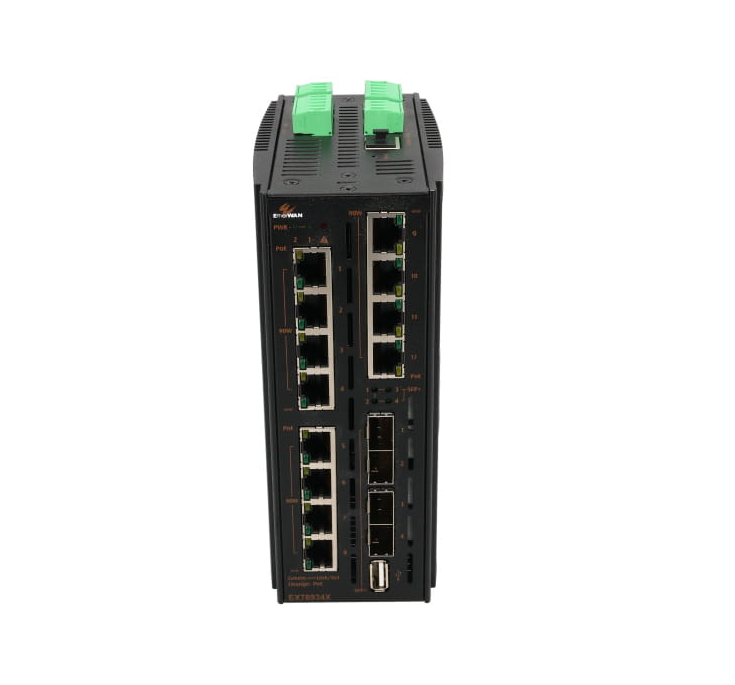

EX78934X-0VB12-port 10/100/1000BASE-T(X) PoE + 4-port 1/10G SFP+

Accessories

Hardened Gigabit & 10 Gigabit SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power Supplieswww.etherwan.com/products/din-rail-power-supply (*)
*Recommended Power SupplyNDR-480-48 480W 48VDC DIN-Rail Power Supply
