OttoE PoE 10 GE

工業級非網管型 PoE 10 埠乙太網路交換器

IEEE 802.3bt 90W高功率供電

PoE Watchdog 看門狗 (專利)

支援 SFP 連接埠

6Kv 雷擊保護

QoS 封包排程

Downloads

QIG Visio Stencil

OttoE PoE 10 GE 交換機專為嚴苛環境下的快速佈署而設計，能夠承受廣泛的溫度範圍、抗震與抗衝擊，並符合嚴格的安全標準。這是一款低成本、易於使用的設備，結合了工業乙太網路的基本功能、即時決定性網路操作，以及進階的強固性表現。

內建的看門狗功能讓 OttoE PoE 10 GE成為一款具備智能的裝置，可防止網路中受電設備發生封包遺失。此功能可透過 DIP 開關針對各埠獨立啟用，進一步提升使用彈性。該交換機提供多個 Gigabit 乙太網埠，型號涵蓋銅纜埠與 100/1000Mbps 雙速率 SFP 光纖埠，適用於長距離連接需求。

本產品支援全/半雙工自動協商與自動 MDI/MDIX 功能，可方便地連接各種網路設備。同時支援 QoS（服務品質）功能，能夠進行流量優先排序與資源有效管理。

部署應用場景：工業自動化、智慧電網、結合監控功能的智慧路口。

EtherWAN — "When Connectivity is Crucial."

PoE 功能

- 每埠 IEEE 802.3bt 90W
- 總功率預算達 270W

PoE Watchdog 看門狗功能(專利註冊)

- 可單埠監控並重啓未回應之串接設備 (PD)

支援 SFP 連接埠

- 多達兩個 100/1000BASE SFP 連接埠

高穩定性n

- 工業等級無風扇設計
- 6Kv 雷擊保護

QoS 封包排程

- EtherNet/IP (UDP 2222)
- PROFINET (Ether type 0x8892)

Interface

Ethernet
- 10/100/1000BASE-TX: 8 ports
- 100/1000BASE-SFP: 2 ports
LED Indicators
- Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
- Per Port: Link/Activity (Green)
Alarm Contact
- One relay output with current 0.5A@48VDC
Dip Switch
- No.1 - 8: Port 1 to 8 Watchdog ON/OFF
- EXT: The timer enables Watchdog (ON: 5 min. / OFF: 10 min.)

Technology

Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3af/at/bt Power over Ethernet
Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
Packet Buffer Memory
- 1.5M bits
Processing Type
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure and IEEE
- Auto MDI/MDIX
Address Table Size
- 4K MAC

Environmental

Operating Temp.
- -10 to 60°C (14 to 140°F)
Storage Temp.
- -40 to 85°C (-40 to 185°F)
Relative Humidity
- 5% to 95% (non-condensing)

Regulatory

ISO
- Manufactured in ISO-9001 facility
EMI
- FCC Part 15 Class A
- VCCI Class A
- EN 61000-6-4
- ICES-003
- EN 55032
EMS
- EN 61000-6-2
  - - EN 61000-4-2 (ESD)
  - - EN 61000-4-3 (Radiated RFI)
  - - EN 61000-4-4 (Burst)
  - - EN 61000-4-5 (Surge)
  - - EN 61000-4-6 (Induced RFI)
  - - EN 61000-4-8 (Magnetic field)
Safety
- UL 61010
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- IEC 60068-2-31 (Free fall w/package)
Industrial
- EN 50121-4

Power

Input
- 46-57VDC (Terminal Block)
Power Consumption
- 9.72W (without PoE)
Protection
- Reverse Polarity Protection
PoE Power Output
- Up to 90W/port
- Power Budget: 270W
**
- 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
- 52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
- 54-57VDC for IEEE 802.3bt, type 4, 90W PD devices.

Physical

Casing Material
- Metal
IP Rating
- IP30
Dimensions
- 45x125x145mm (W x D x H) (1.77"x4.92"x5.71")
Weight
- 577g (1.27lbs)
Installation Type
- DIN-Rail (Top hat type 35mm) mounting

Warranty

Length
- Limited Lifetime
Details
- www.etherwan.com/support/warranty-policy

What's Included

Device
- Ethernet switch

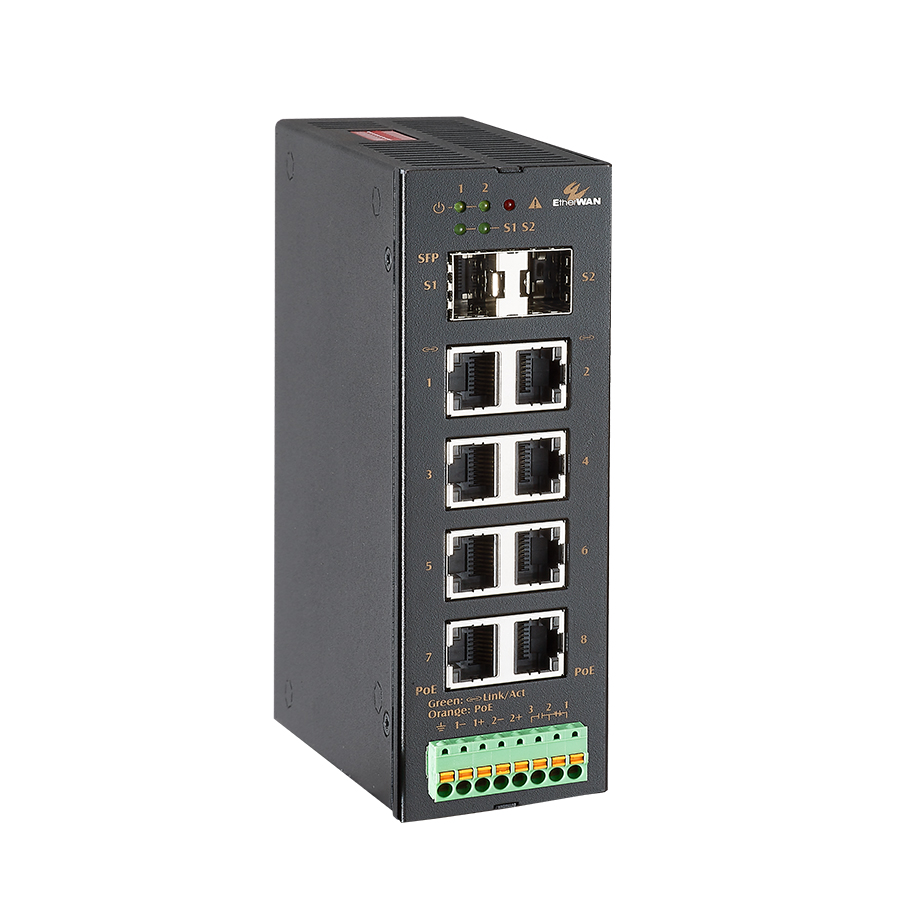

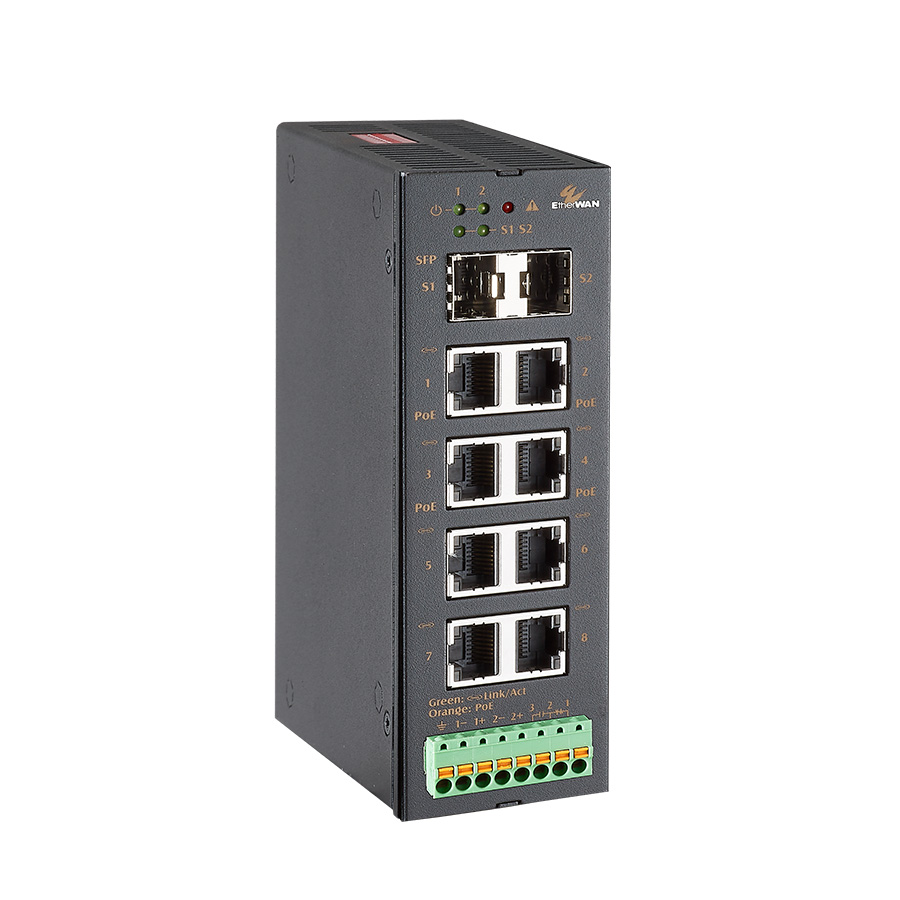

OttoE PoE

Gigabit models

	TG103-0442	TG103-0802
10/100/1000BASE TX	8	8
PoE port	4	8
100/1000BASE SFP	2	2
Power Input	2 ( 46~57VDC ) Push-in spring terminal block
QoS	EtherNet/IP & Profinet
Corrosion Resistant	IP30
	Quote	Quote

Optional Accessories

NDR-480-48

480W 48VDC DIN-Rail Power Supply
