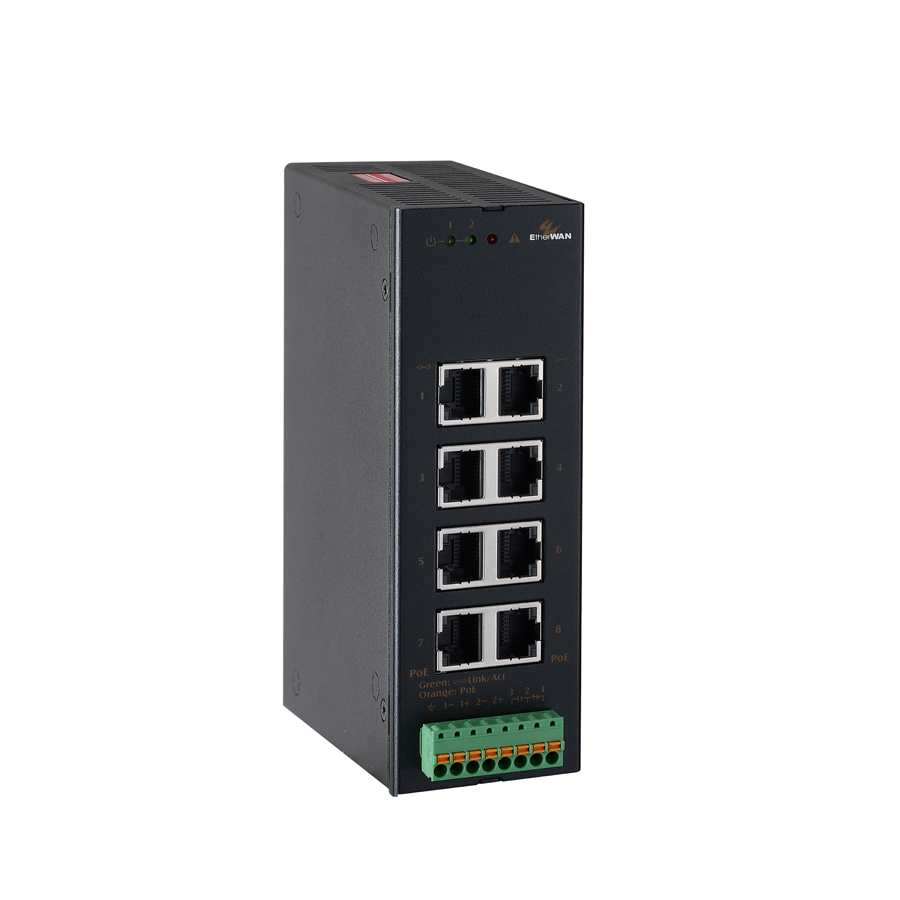

OttoE PoE 08H GE
OttoE PoE 08H GE 是一款工業級強固型非網管 PoE 交換器，專為嚴苛工業環境與戶外場域快速佈署設計。設備具備寬廣操作溫度範圍（-40°C 至 75°C）、抗震耐衝擊結構，並符合嚴格工業安全標準，確保可靠穩定的網路連線。支援 IEEE 802.3bt PoE++，每埠可提供最高90W Gigabit PoE電力，適用於 PTZ 攝影機、無線基地台、工業物聯網設備及邊緣人工智慧裝置。內建 6kV 突波保護，有效防止電源干擾與雷擊損害。PoE Watchdog（看門狗）智能功能可透過 DIP 開關獨立啟用每埠，當設備無回應時自動重啟，避免封包遺失與系統停機，特別適合無人值守的工業應用環境。
OttoE PoE 08H GE 支援全/半雙工自動協商與自動 MDI/MDIX，輕鬆連接多種網路設備；同時搭載 QoS（服務品質） 功能，優先處理關鍵資料流，提升網路效能與資源管理。此款工業級 8埠 Gigabit PoE 交換器，結合堅固金屬外殼與寬溫設計，適用於戶外機櫃、路邊箱體及各種工業現場，完美滿足智慧交通、智慧電網與工業自動化等嚴苛應用需求。
EtherWAN — "When Connectivity is Crucial."
PoE 功能
PoE Watchdog（專利技術）
| 強固級設計
服務品質 (QoS)
|
Interface
- Ethernet
- 10/100/1000BASE-TX: 8 ports
- LED Indicators
- Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
- Per Port: Link/Activity (Green)
- Alarm Contact
- One relay output with current 0.5A@48VDC
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3af/at/bt Power over Ethernet
- Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- Packet Buffer Memory
- 1.5M bits
- Processing Type
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure and IEEE
- 802.3x full-duplex flow control
- Auto MDI/MDIX
- Address Table Size
- 4K MAC
Power
- Input
- 46-57VDC (Terminal Block)
- Power Consumption
- 9.72W (without PoE)
- Protection
- Reverse Polarity Protection
- PoE Power Output
- Up to 90W/port
- Power Budget: 270W
- **
- 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
- 52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
- 54-57VDC for IEEE 802.3bt, type 4, 90W PD devices.
Physical
- Casing Material
- Metal
- IP Rating
- IP30
- Dimensions
- 45x125x145mm (W x D x H) (1.77"x4.92"x5.71")
- Weight
- 577g (1.27lbs)
- Installation Type

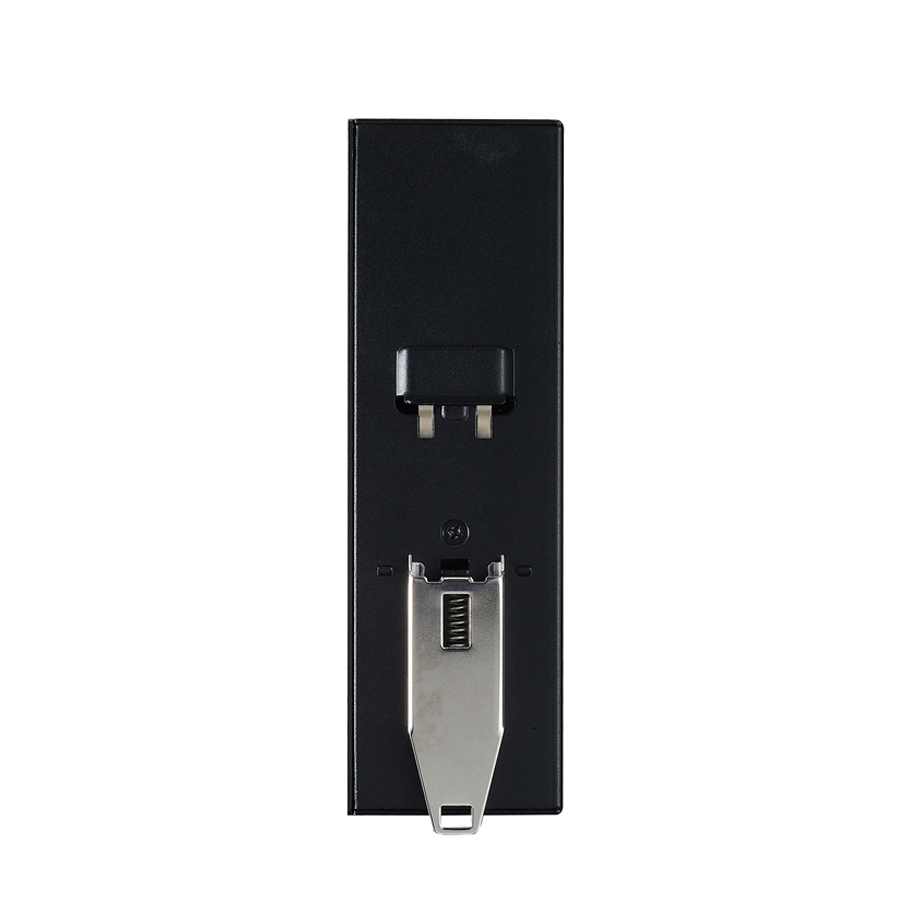

- DIN-Rail (Top hat type 35mm) mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -40 to 85°C (-40 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15 Class A
- VCCI Class A
- EN 61000-6-4
- ICES-003
- EN 55032
- EMS
- EN 61000-6-2
- - EN 61000-4-2 (ESD)
- - EN 61000-4-3 (Radiated RFI)
- - EN 61000-4-4 (Burst)
- - EN 61000-4-5 (Surge)
- - EN 61000-4-6 (Induced RFI)
- - EN 61000-4-8 (Magnetic field)
- EN 61000-6-2
- Safety
- UL 61010
- Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- IEC 60068-2-31 (Free fall w/package)
- Industrial
- EN 50121-4
Warranty
- Length
- Limited Lifetime
- Details
What's Included
- Device
- Ethernet switch
