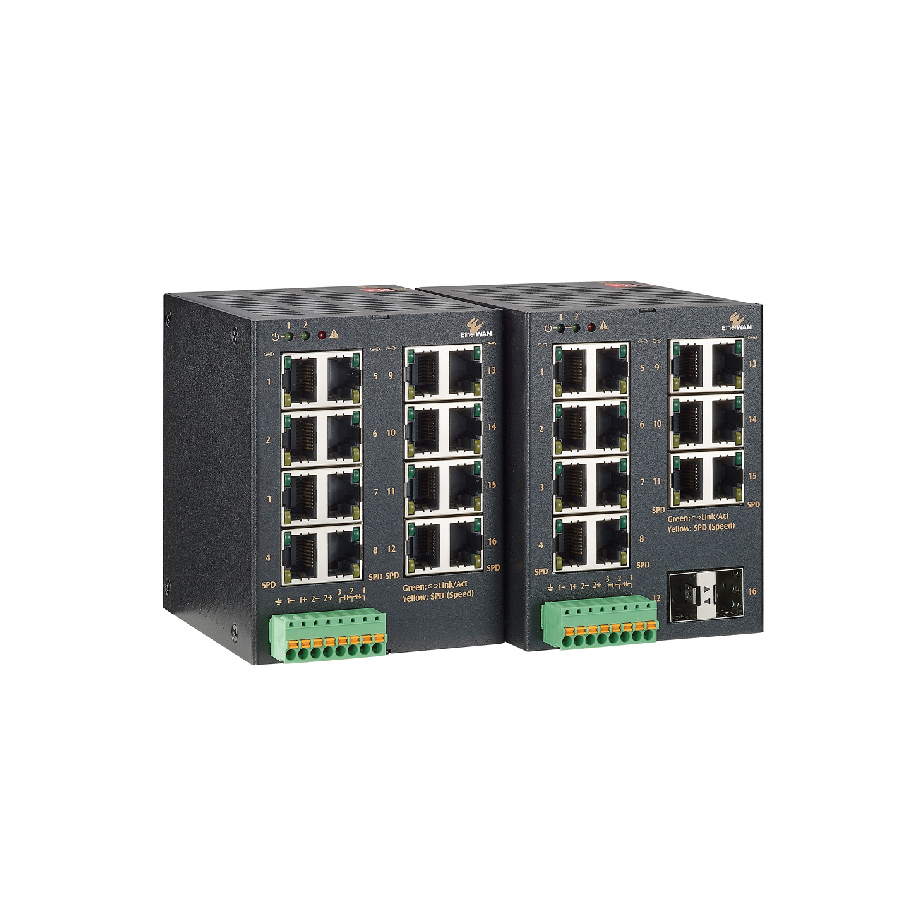

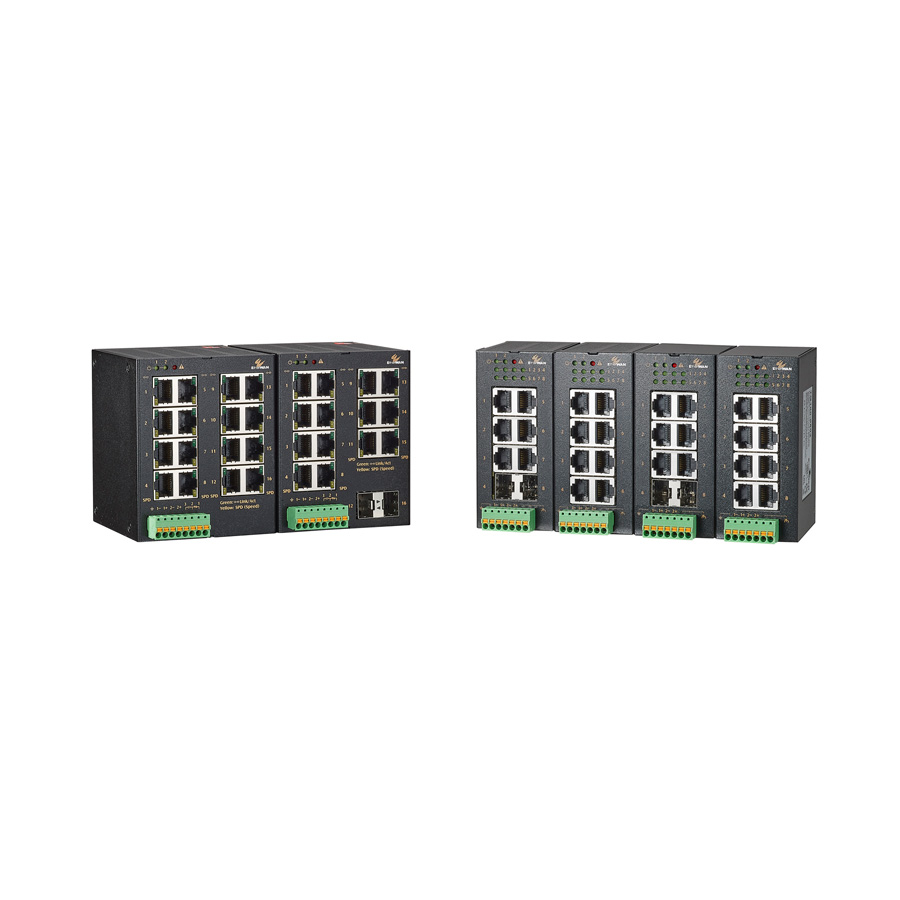

OttoE 16H FE

強固級非網管型 16 埠乙太網路交換器

QoS 封包排程

即時告警

僅 10 公分高超小機身

前插式便利安裝設計

支援 100BASE SFP 光纖串接

Downloads

訂購諮詢

EtherWAN 益網科技 OttoE 16H FE 系列是一款堅固耐用的非管理式乙太網交換解決方案，專為在空間受限與嚴苛工業環境中穩定運作而設計。此系列產品以簡潔與高效為核心，提供工業應用所需的基本網路功能。

OttoE 16H FE 支援 9 到 55VDC 的寬電壓輸入範圍，並具備冗餘電源選項與繼電器警報功能，可在電源異常時即時發出警示。該交換機提供多個 Gigabit 乙太網埠，型號涵蓋銅纜埠與 100Mbps 雙速率 SFP 光纖埠，適用於長距離連接需求。

支援自動協商（全雙工／半雙工）與自動 MDI/MDIX 功能，讓設備連接更為直覺簡便。內建QoS (服務品質) 功能可有效優化網路流量優先順序，提升整體網路效能。OttoE 16H FE 採用堅固金屬外殼，支援導軌安裝，安裝簡便且耐用，並隨附安裝配件。

適用場域：

♦ 工業自動化系統
♦ 鐵路與交通控制
♦ 智慧路口與監控系統
♦ 公共建設

益網科技 - “ 連結，制勝的關鍵 “

可靠的運作機制

- IEEE 802.3az 節電機制
- 電源失效警示

SFP 連接埠

- 最多可支援達兩個 100BASE SFP

高可靠性

- 無風扇設計
- 極性反接保護功能

QoS 封包排程

- EtherNet/IP (UDP 2222)

Interface

Ethernet
- 10/100BASE-TX: 14/16-ports
- 100BASE-SFP: 0/2-ports
Alarm Contact
- One relay output with current 0.5A@48V
LED Indicators
- Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
- Per Port: Link/Activity (Green)
- Per Port: Speed (Yellow)

Physical

Casing Material
- Metal
IP Rating
- IP30
Dimensions
- 80 x 91 x 100mm (W x D x H) (3.15" x 3.58" x 3.94")
Weight
- 502g (1.11lbs)
Installation Type

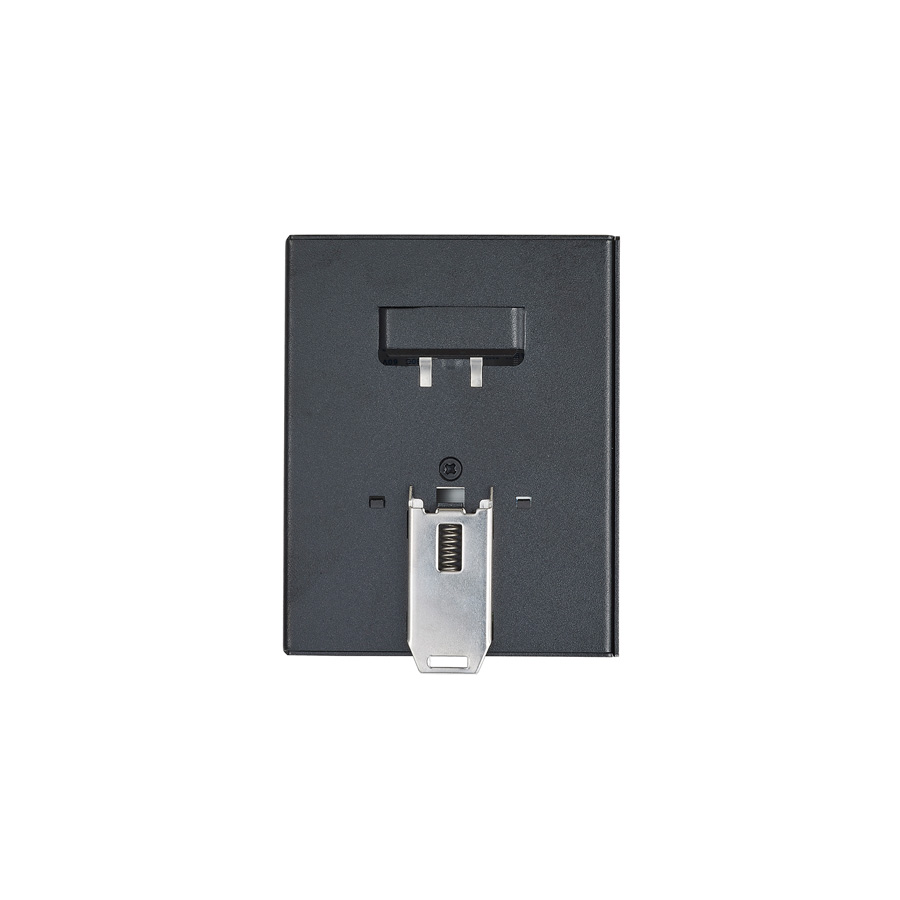

- DIN-Rail (Top hat type 35mm) mounting

Technology

Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
Packet Buffer Memory
- 2M bits
Processing Type
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure
- Auto MDI/MDIX
Address Table Size
- 8K MAC

Regulatory

ISO
- Manufactured in ISO-9001 facility
EMI
- FCC Part 15 Class A
- VCCI Class A
- EN 61000-6-4
- ICES-003
- EN 55032
- BSMI
EMS
- EN 61000-6-2
  - - EN 61000-4-2 (ESD)
  - - EN 61000-4-3 (Radiated RFI)
  - - EN 61000-4-4 (Burst)
  - - EN 61000-4-5 (Surge)
  - - EN 61000-4-6 (Induced RFI)
  - - EN 61000-4-8 (Magnetic field)
Safety
- UL 61010
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- IEC 60068-2-31
- (Free fall w/package)
Industrial
- EN 50121-4
Traffic
- NEMA TS2

Power

Input
- 9-55VDC (Terminal Block)
Power Consumption
- 3.72W max.
Protection
- Reverse Polarity Protection

Warranty

Length
- Limited Lifetime
Details
- www.etherwan.com/support/warranty-policy

Environmental

Operating Temp.
- -40 to 75°C (-40 to 167°F)
Storage Temp.
- -40 to 85°C (-40 to 185°F)
Relative Humidity
- 5% to 95% (non-condensing)

What's Included

Device
- Ethernet switch

Industrial grade unmanaged 8 ports Etherenet switch

Fast Ethernet models

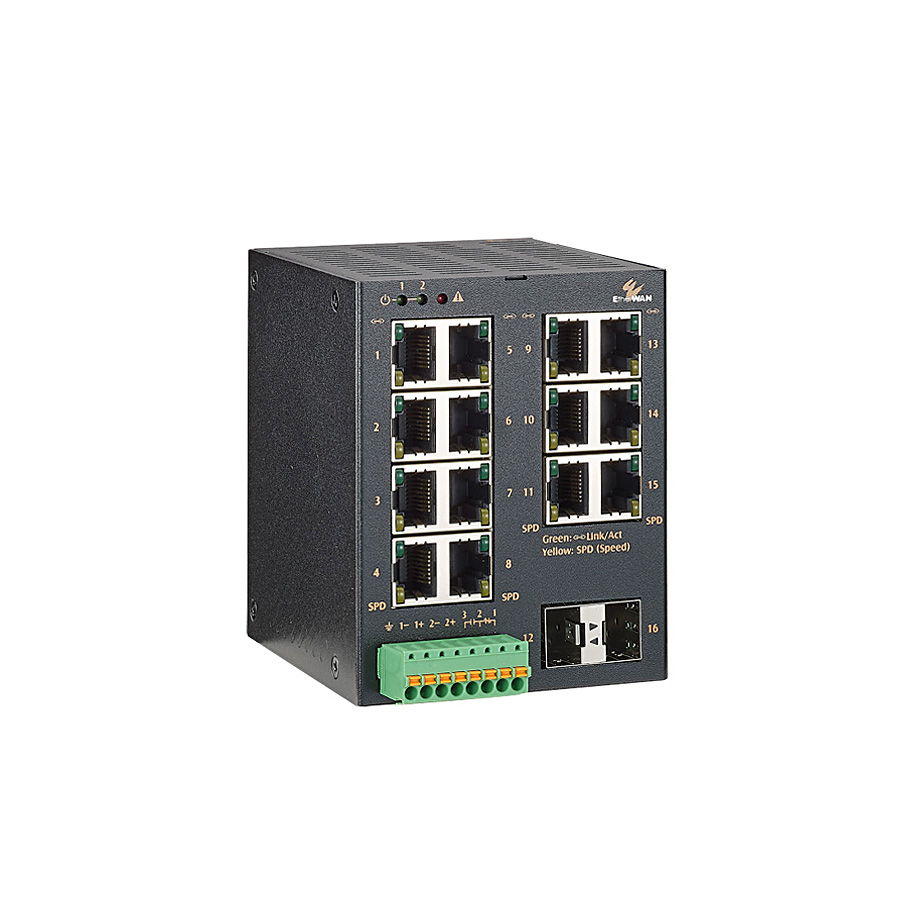

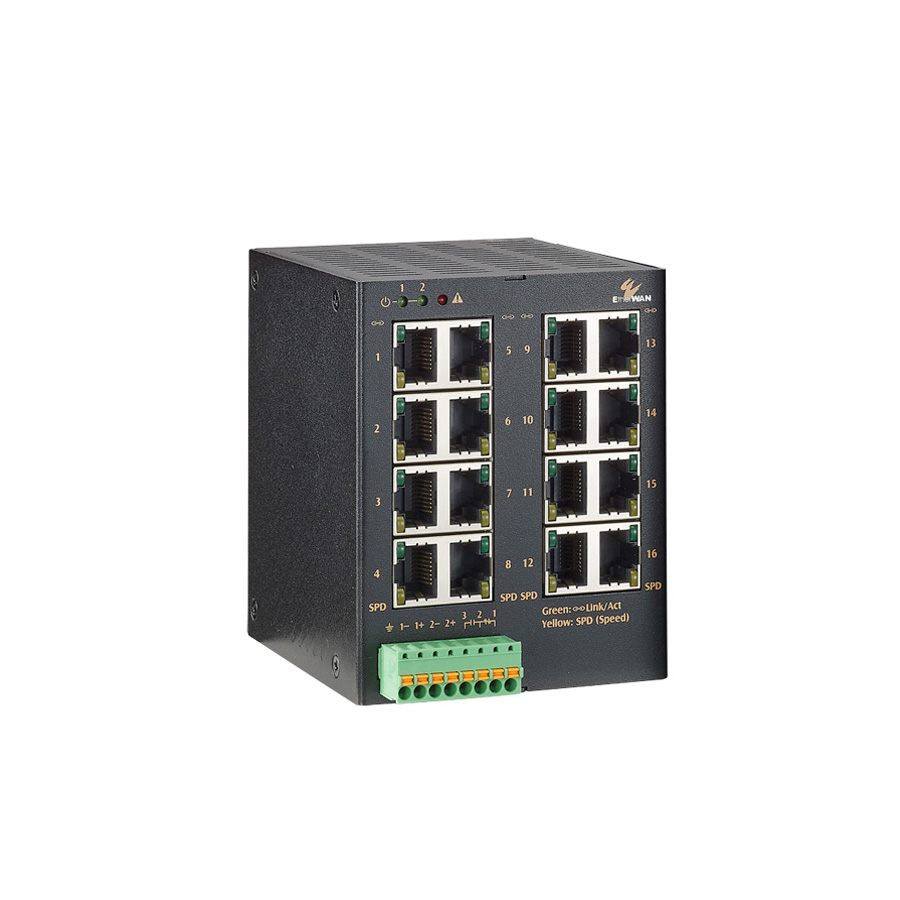

	TF100H-1600	TF100H-1402
10/100Base TX	16	14
100Base SFP	-	2
Power Input	2 ( 9~55VDC ) Push-in spring terminal block
QoS	EtherNet/IP
Corrosion Resistant	IP30
	Quote	Quote

Optional Accessories

HDR-30-24	30W/1.5A DIN-Rail 24VDC Hardened Power Supply
HDR-60-24	60W/2.5A DIN-Rail 24VDC Hardened Power Supply

100BASE SFP Modules

www.etherwan.com/products/sfp-fiber-transceiver
