強固級非網管型 8 埠 Gigabit 乙太網路交換器

QoS 封包排程

即時告警

僅 10 公分高超小機身

前插式便利安裝設計

支援 100/1000BASE SFP 光纖串接

Downloads

訂購諮詢

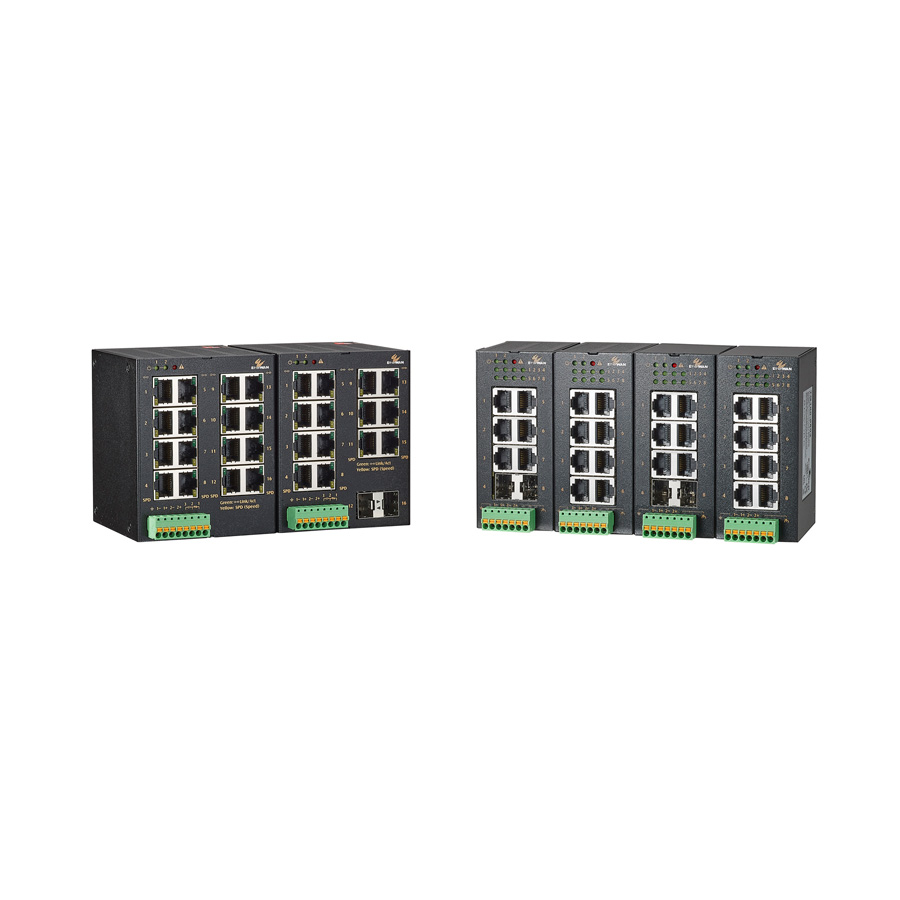

EtherWAN 益網科技 OttoE 08H GE 系列是一款緊湊型強固級非管理式乙太網交換機，專為空間受限與嚴苛環境中的穩定運作而設計。此系列產品以簡潔高效為核心理念，提供基本乙太網功能，並具備極高的性價比。

OttoE 08H GE 支援 9 到 55VDC 的寬電壓輸入範圍，並具備冗餘電源選項與繼電器警報功能，可在電源異常時即時發出警示。該交換機提供多個 Gigabit 乙太網埠，型號涵蓋銅纜埠與 100/1000Mbps 雙速率 SFP 光纖埠，適用於長距離連接需求。

支援自動協商（全雙工／半雙工）與自動 MDI/MDIX 功能，讓設備連接更為直覺簡便。內建QoS (服務品質) 功能可有效優化網路流量優先順序，提升整體網路效能。OttoE 08 GE 採用堅固金屬外殼，支援 DIN 導軌安裝，安裝簡便且耐用，並隨附安裝配件。

適用場域：

♦ 工業自動化系統
♦ 鐵路與交通控制
♦ 智慧路口與監控系統
♦ 公共建設

益網科技 - “ 連結，制勝的關鍵 “

可靠的運作機制

- 雙電源輸入12/24/48 VDC

SFP 連接埠

- 最多可支援達兩個 100/1000BASE SFP

高可靠性

- 無風扇設計
- -40 to 75°C 寬工作溫度

QoS 封包排程

- EtherNet/IP (UDP 2222)
- PROFINET (Ether type 0x8892)

Interface

Ethernet
- 10/100/1000BASE-TX: 6/8-ports
- 100/1000BASE-SFP: 0/2-ports
Alarm Contact
- One relay output with current 0.5A@30V
LED Indicators
- Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
- Per Port: Link/Activity (Green)

Physical

Casing Material
- Metal
IP Rating
- IP30

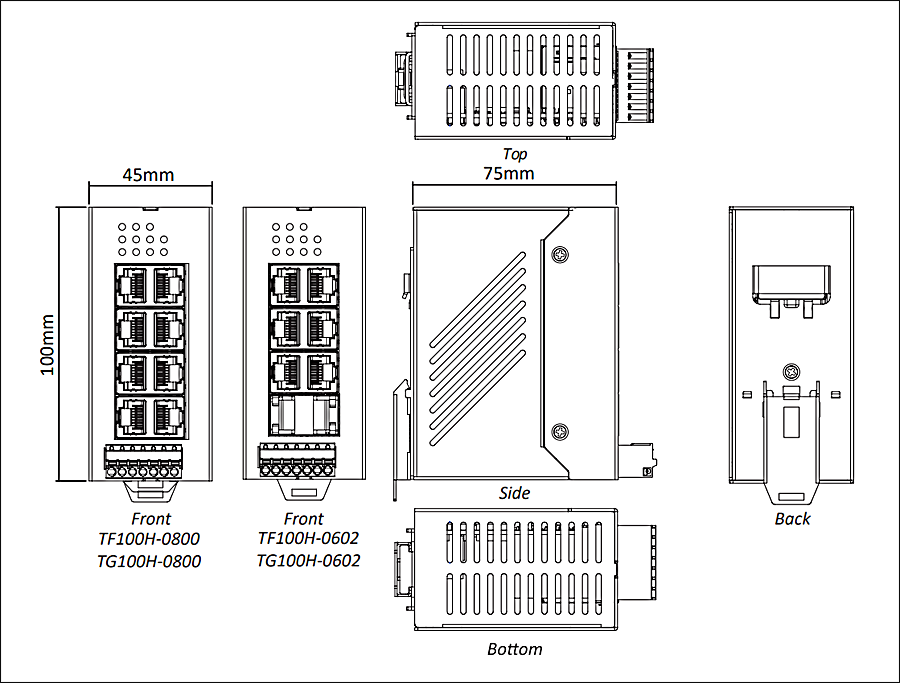

Dimensions
- 45 x 75 x 100mm (W x D x H) (1.77" x 2.95" x 3.94")
Weight
- 336g (0.74lbs)
Installation Type
- DIN-Rail (Top hat type 35mm) mounting

Technology

Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
Packet Buffer Memory
- 1.5M bits
Processing Type
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure
- Auto MDI/MDIX
Address Table Size
- 4K MAC

Regulatory

ISO
- Manufactured in ISO-9001 facility
EMI
- FCC Part 15 Class A
- VCCI Class A
- EN 61000-6-4
- ICES-003
- EN 55032
- BSMI
EMS
- EN 61000-6-2
  - - EN 61000-4-2 (ESD)
  - - EN 61000-4-3 (Radiated RFI)
  - - EN 61000-4-4 (Burst)
  - - EN 61000-4-5 (Surge)
  - - EN 61000-4-6 (Induced RFI)
  - - EN 61000-4-8 (Magnetic field)
Safety
- UL 61010
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- FED STD 101C Method 5007.1
- (Free fall w/package)
Industrial
- EN 50121-4
Traffic
- NEMA TS2

Power

Input
- 9-55VDC (Terminal Block)
Power Consumption
- 3.4W max.
Protection
- Reverse Polarity Protection

Warranty

Length
- Limited Lifetime
Details
- www.etherwan.com/support/warranty-policy

Environmental

Operating Temp.
- -40 to 75°C (40 to 167F)
Storage Temp.
- -40 to 85°C (-40 to 185°F)
Relative Humidity
- 5% to 95% (non-condensing)

What's Included

Device
- Ethernet switch

Industrial grade unmanaged 8 ports Etherenet switch

Fast Ethernet models

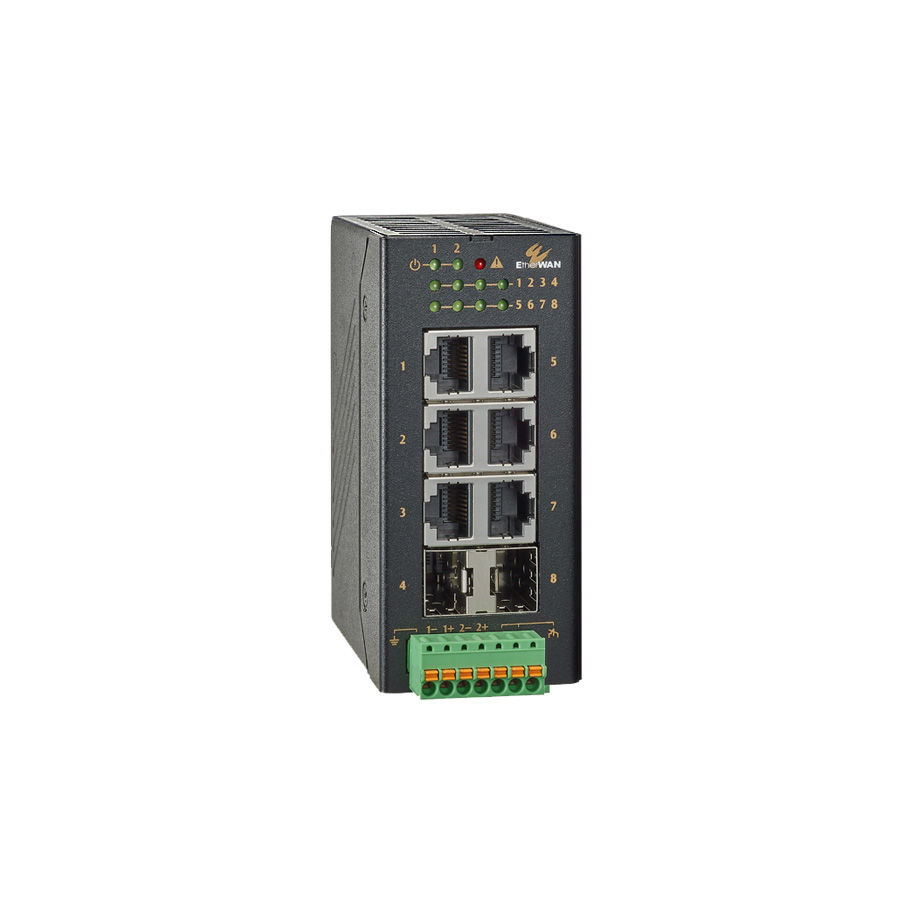

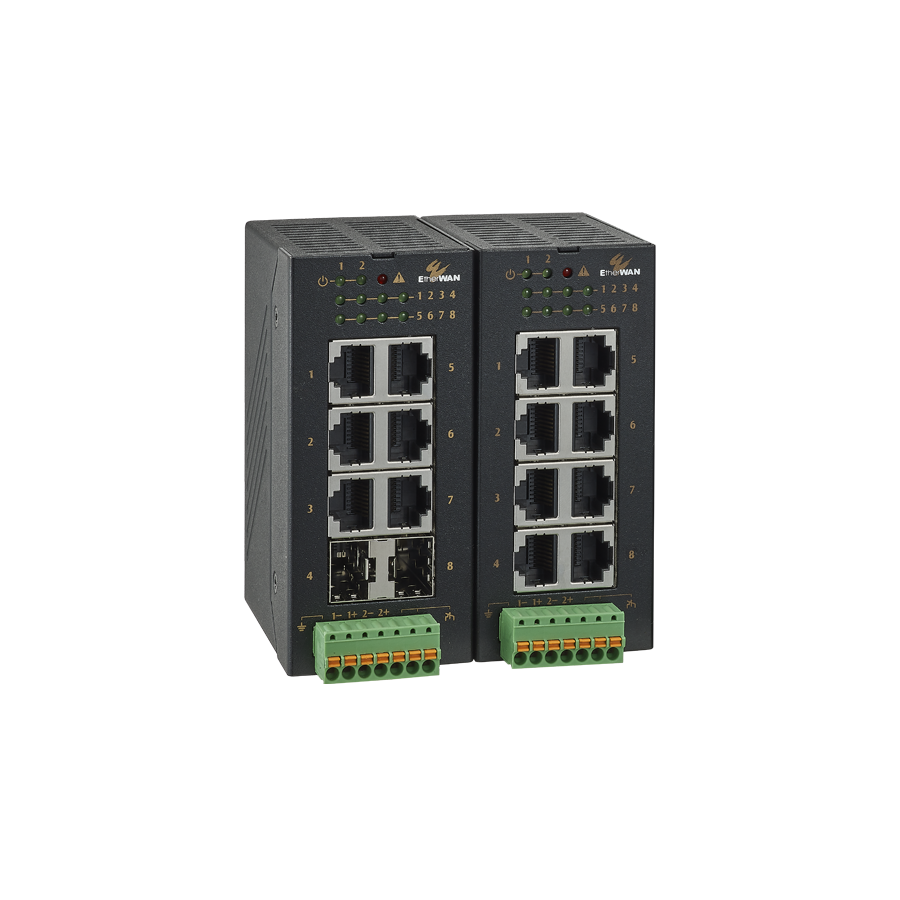

	TG100H-0800	TG100H-0602
10/100/1000BASE TX	8	6
100/1000BASE SFP	-	2
Power Input	2 ( 9~55VDC ) Push-in spring terminal block
QoS	EtherNet/IP, Profinet
Corrosion Resistant	IP30
	Quote	Quote

Optional Accessories

HDR-30-24	30W/1.5A DIN-Rail 24VDC Hardened Power Supply
HDR-60-24	60W/2.5A DIN-Rail 24VDC Hardened Power Supply

100BASE SFP Modules

www.etherwan.com/products/sfp-fiber-transceiver
