EX42900 系列
強固級非網管 5 埠 10/100/1000BASE-T +1 埠1000BASE-X Gigabit 乙太網路交換器
輕巧型、全 Gigabit 乙太網路交換器
強固等級,支援鋁軌式安裝
彈性光纖介面選擇 (SC/ST/WDM) 以支援遠距離傳輸
Downloads
EX42900 系列為輕巧型強固級非網管鋁軌式安裝之機型,具備五個 Gigabit 乙太網路連接埠或 Gigabit RJ45 網路埠搭配 1 個 Gigabit 光纖埠之組合以支援長距離傳輸,適合使用於工廠工業自動化、IP 影像監控、802.11n WiFi 無線網路連線等需要高頻寬同時也需節能減碳之應用環境。
EX42900 系列雖屬非網管機型,但支援 Jumbo Frame、full wire speed Gigabit throughput、QoS support,並符合 eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet) 標準。薄型化的設計支援軌道式 (DIN-rail) 安裝,十分適合安裝於有限的空間。前面板的 LED 指示燈可讓使用者清楚地檢視連線狀態以及電源狀態。
EtherWAN — "When Connectivity is Crucial."
強固等級設計
- 寬溫操作 ( -40 到 75°C)
支援 Jumbo Frame
- 最高支援 10K bytes (EX42905 / EX42914 系列)
光纖介面連接
- 最高支援 1 個 1000BASE-FX 埠,彈性搭配 SC、ST 組合
高可靠性能
- 無風扇設計
- 全機體固定設計,無可活動零件
技術
- 標準
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x Full duplex flow control
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
- Forward and Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- 緩衝記憶體封包
- EX42905/EX42914: 1M bits
- 傳輸型式
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
- Auto MDI/MDIX
- 巨大封包
- EX42905/EX42914: 10K bytes
- MAC地址表
- EX42905/EX42914: 8K MAC addresses
電源
- 輸入電壓
- 12-48VDC
- 電力功耗
- 6.5W Max. 0.25A@24VDC
- Protection
- Reverse polarity protection
機構
- 機殼
- 金屬材質
- IP30
- 尺寸
- EX42905/EX42914: 30 x 76.3 x 110mm (W x D x H) (1.18" x 3.05" x 4.4")
- 重量
- EX42905/EX42914: 0.34Kg (0.75lb.)
- 安裝方式
- DIN-Rail (Top hat type 35mm)
介面
- 乙太網路埠
- EX42905/EX42914: 10/100/1000BASE-T: 5 or 4 ports 1000BASE-X: 0 or 1 ports
- LED 指示燈號
- EX42905/EX42914: Per Unit: Power (Green) Per Port: 10/100M(Green), 1000M (Yellow)
- Alarm Contact (EX42908/EX42917 only)
- One relay output with current 1A@250VAC
- Supports normal close and normal open
- DIP Switches (EX42908/EX42917 only)
- Enable/Disable Port fault alarm
環境
- 工作溫度
- -40 to 75°C (-40 to 167°F); Tested @ -40 to 85°C (-40 to 185°F)
- 儲存溫度
- -40 to 85°C (-40 to 185°F)
- 工作濕度
- 5% to 95% (non-condensing)
通過認證
- ISO
- Manufactured in an ISO 9001 facility
- Safety
- UL 60950 (EX42905/EX42914 Series only)
- EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
- EN 55022 Class A
- EMS
- EN 61000-6-2
- -EN 61000-4-2 (ESD Standards)
- -EN 61000-4-3 (Radiated RFI Standards)
- -EN 61000-4-4 (Burst Standards)
- -EN 61000-4-5 (Surge Standards)
- -EN 61000-4-6 (Induced RFI Standards)
- -EN 61000-4-8 (Magnetic Field Standards)
- EN 61000-6-2
- Environmental Test Compliances
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- FED STD 101C Method 5007.1 (Free fall w/package)
型號

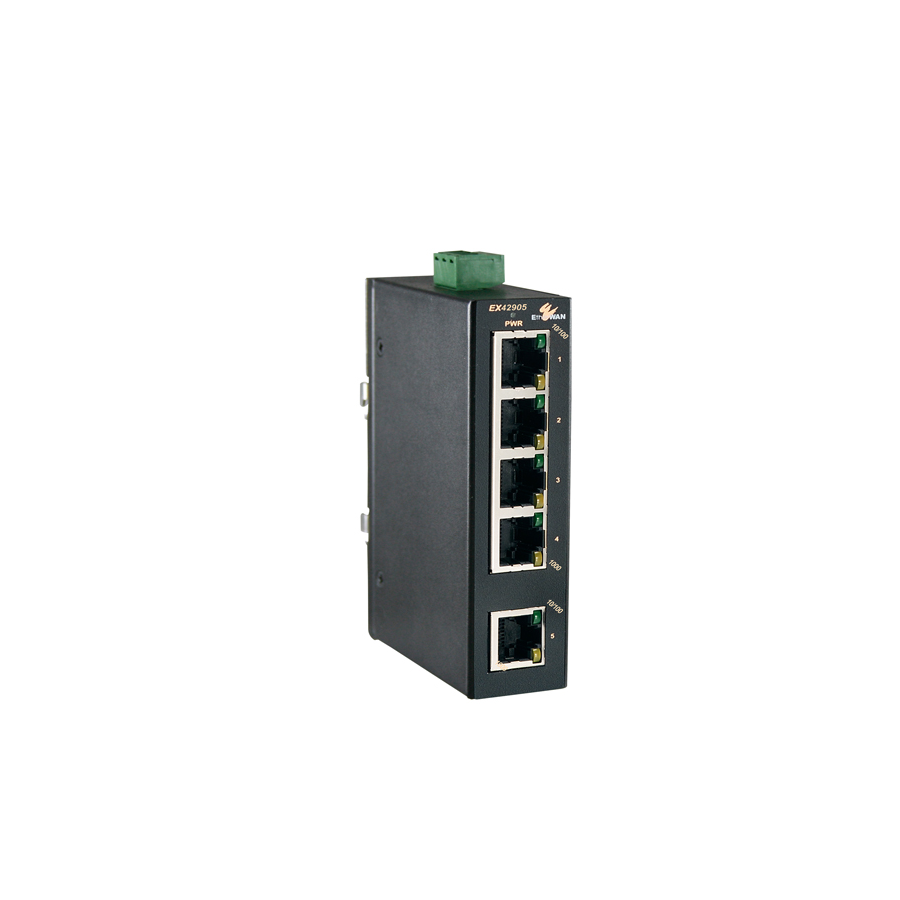

EX42905 | 5-port 10/100/1000BASE-T Gigabit Hardened Unmanaged Ethernet Switch |
EX42914-X | 4-port 10/100/1000BASE-T +1-port 1000BASE-X Gigabit Hardened Unmanaged Ethernet Switch |
* DIN-Rail mounting kit included.
Optical Port Options (X)
3 | 1000BASE-SX (SC) - 550m |
5 | 1000BASE-SX (ST) - 550m |
A | 1000BASE-LX (SC) - 10km |
R | 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km |
S | 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km |
Optional Accessories
HDR-30-24 | 30W/1.5A DIN-Rail 24VDC Industrial Power Supply |
HDR-60-24 | 60W/2.5A DIN-Rail 24VDC Industrial Power Supply |
EDR-75-24 | 75W/3.2A DIN-Rail 24VDC Industrial Power Supply |
EX41-145046-X | Power Supply 45W 12VDC with Open Wire (X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA |
