Preconfigured Multipoint IP67 Wireless Bridge Kit
Fanless
IP67
ITS
PtMP
Available in North America only
Easy set up - just power and align using supplied PoE injectors and power supplies
Highly secure with encrypted & authenticated Wireless Connection (WPA2)
Hardened-grade for outdoor & harsh environments
Downloads
Datasheet
Inquiry

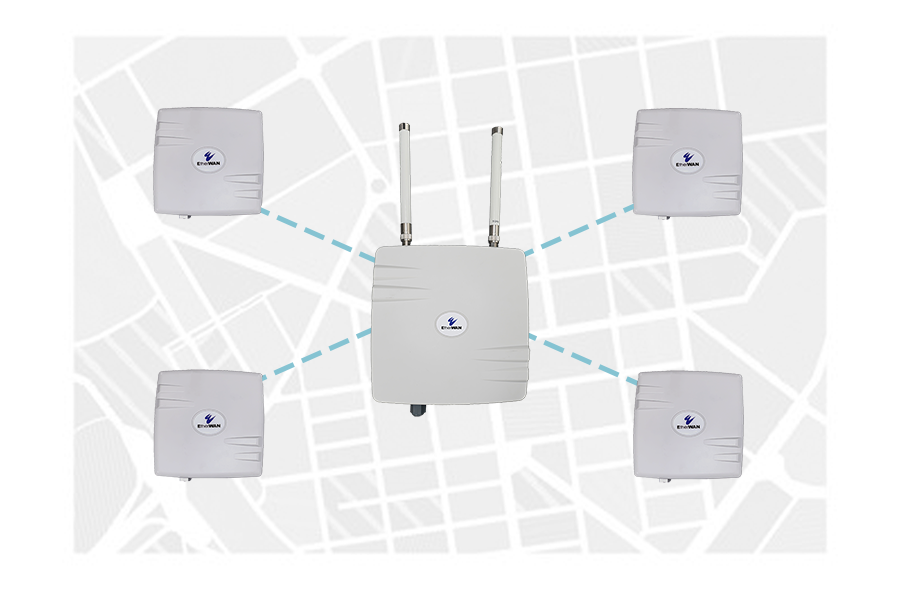

EtherWAN’s EasyLink is a pre-configured Multipoint Bridge kit which allows for connecting a set of remote
locations wirelessly up to 2 miles away. EasyLink MP’s simple setup allows you to connect locations by mounting the hardware, powering them on, and aligning the units using the built-in alignment LEDs. Each kit contains one central bridge unit plus two/four/six auxiliary units that connect automatically using a highly secure, unique, and hidden SSID and randomly generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.


EtherWAN — "When Connectivity is Crucial."

Easy

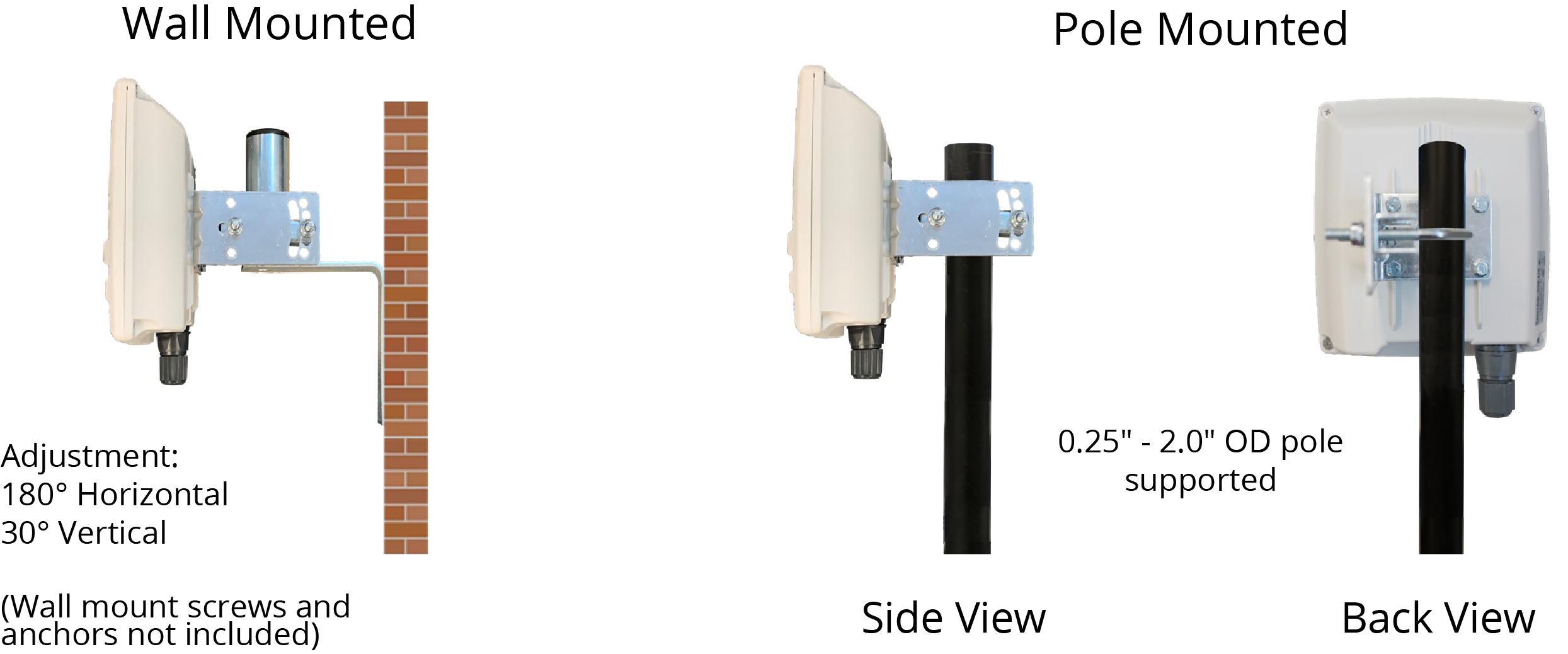

  • Mount units to a pole or wall using included mount kit
  • Signal strength LED's for easy alignment
  • Just power and align using supplied PoE injectors and power supplies
  • No technical expertise needed

Highly Secure

  • Encrypted & Authenticated Wireless Connection (WPA2)
  • Every kit has unique SSID and security settings
  • Management Frame Protection (MFP) enabled

Hardened-Grade for Outdoor & Harsh Environments

  • Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
  • Wide operating temperature range (-40 to 167°F)
  • Connections up to 2 miles away

Wireless

  • Frequency 5 GHz
  • Max data rate 300 Mbit/s
  • Number of chains: 2 per unit
  • Standards 802.11a/n
  • WPA2 Passphrase
  • 256-bit AES-CCM Encryption
  • Dynamic Frequency selection

Layer 2 Features

  • Auto-negotiation for port speed and duplex
  • Redundant Protocols (always enabled)
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-T
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.11w Management Frame Protection (MFP)
  • Power
    • Primary Node:
      PoE in (Active PoE 802.3at/bt)
      Max power consumption 17W
    • Auxiliary Node:
      PoE in (Passive PoE)
      PoE in input Voltage 6-30V
      Max power consumption 11W

Physical

  • Primary Node
  • Dimensions
    • 270 x 565 x 76mm (W x H x D)
    • 10.63” x 22.25” x 3”
  • Weight (shipping)
    • 6.2lbs (2.81kg)
  • Installation Type
    • Pole/Wall
  • Casing Material
    • UV Protected Polystyrene case
  • Auxiliary Node
  • Dimensions
    • 185 x 185 x 63.5mm (W x H x D)
    • 7.28” x 7.28” x 2.5”
  • Weight (shipping)
    • 2 units per box: 7.15lbs (3.25kg)
  • Installation Type
    • Pole/Wall
  • Casing Material
    • UV Protected Polystyrene case

Interface

  • Ethernet
    • Primary Node: 10/100/1000BASE-T Passive PoE
    • Auxiliary Node: 10/100/1000BASE-T
  • Wireless
    • 802.11a/n
  • LED Indicators

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • Wind Survivability
    • 200km/h

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • PCC Part 15C

Environmental Test Compliance

  • IEC 60068-2-6 Fc (Vibration Resistance)
  • EN 61000-4-3 (Radiated RFI)

Warranty

  • Length
    • 3 years
  • Details
    • https://etherwan.com/support/warranty-policy

Unit Connected



Unit Mounted



Auxiliary Node Performance

  • VSWR
    • < 2.0@ 5-5.9GHz
  • Dual polarized
    • Horizontal & Vertical
  • High gain
    • Up to 13dBi
  • Front to Back Ratio
    • >20dB
  • Port isolation
    • >30dB

Auxiliary Node Electrical Specification

  • Frequency Range
    • 5-5.9 GHz
  • Gain
    • 13dBi typ.
  • Polarization
    • Dual linear-V & H
  • Beamwidth Horizontal
    • 37 deg@ -3dB
  • Beamwidth Vertical
    • 37 deg @ -3dB
  • VSWR
    • <2.0 typ.
  • Impedance
    • 50 Ohm
  • RF Interface
    • 2 x SMA Female
  • Front-to-Back Ratio
    • >20dB
  • Port-to-Port Isolation
    • >30dB

Primary Node Specifications

  • VSWR
    • 2.5: 1 Max.
  • Polarization
    • Linear & Vertical
  • Peak gain
    • 8 dBi
  • Average gain
    • 6 dBi
  • Frequency range
    • 5150 - 5875 MHz
  • Power handling
    • 2W (cw)
  • Impedance
    • 50 Ω
  • Connector
    • N PLUG

Primary Node Environmental & Mechanical Characteristics

  • Temperature
    • -40°C to +85°C
  • Humidity
    • 90% @ 25°C





Primary Node Omni-directional Antenna

Gain - Azimuth & Elevation - Port 1

Gain - Azimuth & Elevation - Port 2



Auxiliary Node Panel Antenna

3D Gain - Port 1

3D Gain - Port 2





Model

EasyLink-300-US-MP-022 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 3 x 24VDC, 1.5A Power Supplies, 3 x Passive PoE Injectors and 3 x Mounting kits.
EasyLink-300-US-MP-044 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 5 x 24VDC, 1.5A Power Supplies, 5 x Passive PoE Injectors and 5 x Mounting kits.
EasyLink-300-US-MP-066 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 7 x 24VDC, 1.5A Power Supplies, 7 x Passive PoE Injectors and 7 x Mounting kits.



Accessories

EW-JPole1818" Wall Mount J-Pole
EasyLink-PSU-INJReplacement Power Supply and Gigabit Passive PoE Injector for EasyLink Wireless Bridge Series
Cable 33’ Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 2525' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 5050' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 150150' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 300330' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
EPOW-24-60-AHardened Power Supply rated for use in temperatures -40 to 167°F
PoEPowerEZPoE Switch to EasyLink Adapter Hardened -40 to 165°F (Eliminates the need for a power supply)
